Screw

Model: Bimetallic Screw

Category: Machinery Parts and Components / Machinery Parts and Components / Precision Metal Parts

Online Inquiry

Characteristics

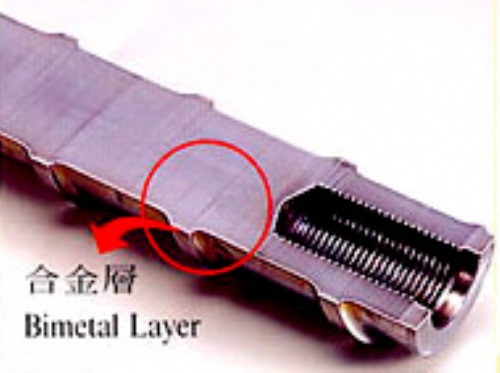

With a view to meet the ever increasing market demands, present day plastic processors have resorted to the use of plastic raw materials which included all kinds of sophisticated ingredient such as glass fibre additive, carbon fibre, mineral stone powder additive, heat-resisting chemical additive, etc., thereby causing serious abrasion and to the barrel and screw as well as reducing their life span. To meet this challenge, our Co. had developed a kind of bimetallic barrel and screw which have shown a remarkable anti-abrasion and anti-corrosion resistance in its practical application. Through our research and development efforts have also been taken to cope with the need to strengthen the effectiveness our bimetal product when engineering plastic raw materials are used in the plasticating process. The chemical composition of 25% of tungsten (WC) in the bimetal layer of the barrel has proved to possess a far better anti-abrasion and anticorrosion strength, surpassing the quality of those manufactured in the U.S.A. , Japan and European countries. In order to achieve a life span for the screw, our Co. has, besides the PTA treatment on the screw flights, also developed the technique of hardness coating of the entire screw surface, so as to bring more benefits to the processors.

A grade bimetallic barrel and screw set-with 40% tungsten carbide composition included in the barrel's bimetallic content, coupled with a screw whose entire surface is fully hardened through HP/HVOF coating treatment process.

B grade bimetallic barrel and screw set-with 40% tungsten carbide composition included in the barrel's bimetallic content, coupled with a screw whose entire surface is fully.

C grade bimetallic barrel and screw set-with 9.5% tungsten carbide composition included in the barrel's bimetallic content, coupled with a screw whose flights are hardened through PTA Bimetallic alloy treatment process.
