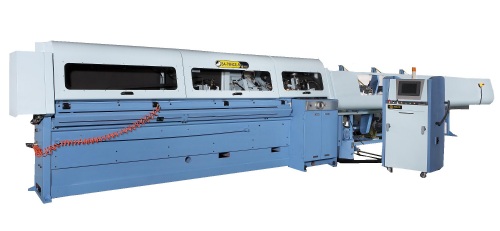

High Tensile Steel Tube Cutting Machine
Model: SA-78NCE
Category: Machine Tools / Sawing Machines / Sawing Machines, Circular
Characteristics
The new SOCO SA-78NCE brings you the latest technology in High Tensile Steel Tube Sawing. Its unique design and cutting system brings the highest saw blade life in such applications, as well as unparalleled performance and speed.
Equipped with a Bundle Loading Magazine and with an Output Gate of 2, 3 or 4.5 meters, the SA-78NCE offers the highest sawing output for High Tensile, Mild Steel and Stainless Steel tubes and pipes. SA-78NCE may be equipped with 2 different saw blades:
- TCT saw blades : High Tensile Materials and other Steels
- HSS saw blades : mild and stainless steel.
Together with SOCO’s i2® (Intelligent Interface) control system and Touch Screen, the SA-78NCE offers precision and versatility, while allowing for quick setup times between different tube materials, sizes and lengths.
It is capable of sawing various shapes of profiles such as round, rectangular, square tubes and round bars. As part of an automation cells, It may connected to :
- Brush Deburring(BDB-70)/Chamfering (DEF-FA/76-V)
- Length Measuring (LM-3000)
- Stacking (STK-3000)
Specifications
Performance ( with SOCO’s TCT Saw Blade HTTM Ø280 x 120z ):
Ø50 x 30 X 1.2t, L = 366mm, Tensile Strength = 100Kg/cm²
Sawing Time: 4.99 seconds
Cycle Time: 7.19 seconds
Saw Blade Life: more than 10,500 Cuts
