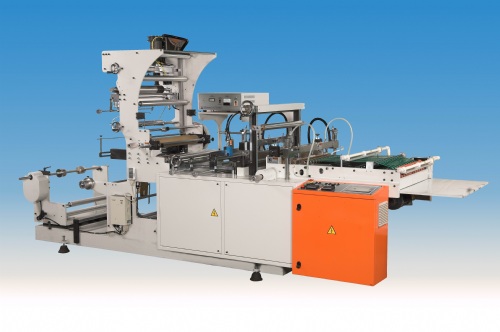

HIGH-SPEED AUTOMATIC TRIMMING, SIDE SEALING AND CUTTING MACHINE
Model: SDH-263S
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Bag Sealing Machines
Characteristics
• Auto stop if material runs out.
• High accuracy of pivot points tracing provided by high precision photocell sensor (made in Germany).
• Auto stop if printing mark out of position.
• Imported high speed conveyor belt & electronic parts for long service life.
• Convenient to change for various bag shapes.
• Ruggedly constructed for maximum stability during high speed.
Specifications
Specification:
Available material : PP, CPP,BOPP,HDPE,LDPE
Width of Bag : 50mm ~ 600mm Max.
Length of Bag : 600mm Max.
Speed : 150 PCS/Min Max.
Converting Thickness : 0.015 ~ 0.08 m/m
