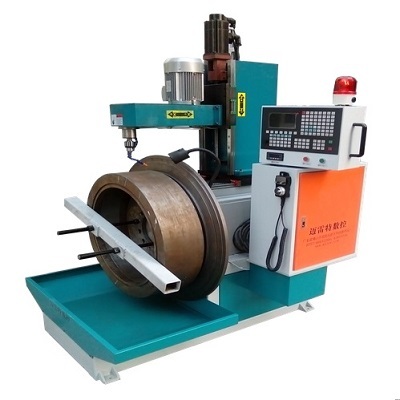

MLTOR CNC pellet ring die outer drilling machine
Model: MLT-WZ850/1050
Category: Machine Tools / Drilling Machines / CNC Drilling Machines
Characteristics
This Mltor automatic pellet mill ring die drilling machine is specifically designed for fine machining of ring dies which used in animal feed pellet mill, biomass fuel pellet mill. The system along with the machine is totally self-developed by our company. The Mltor brand system have now been widely used in the domestic related machine tool owning to its considerate function and high positioning accuracy.
Specifications
Conventional model: MLT-WZ850
Horizontal stroke: 400mm
Z axis stroke: 300mm
Drilling diameter: 0.8-10mm
Ring die diameter: 250-680mm(inner), 850mm(outer)
Positioning accuracy: 0.02mm
Spindle speed: 0-5000RPM (poleless speed control)
Spindle power: 1.5kw
System language: Chinese/English
size: 162 x 120 x 210cm
Weight: about 700kgs
Intensive model: MLT-WZ1050
Horizontal stroke: 430mm
Z axis stroke: 320mm
Drilling diameter: 4-8mm
Ring die diameter: 300-850mm(inner), 1050mm(outer)
Positioning accuracy: 0.02mm
Spindle speed: 0-2800RPM (poleless speed control)
Spindle power: 2.2kw
System language: Chinese/English
size: 172 x 130 x 230cm
Weight: about 900kgs
