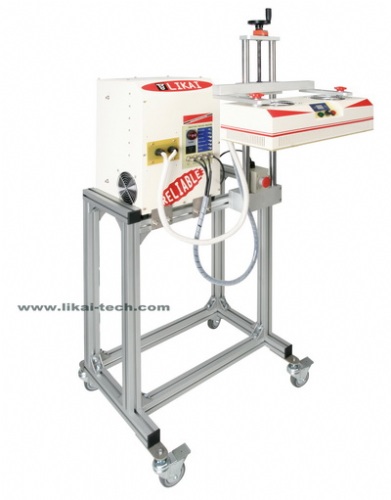

Full-Automatic Induction Alu. Foil Sealing Machine
Model: LK-400B (不含輸送帶) & LK-400C (含輸送帶)
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Bag Sealing Machines
Characteristics
1. Easy & simple to use. Slim design saves space.
2. Warning lights for all main functions on the display.
3. Unique air-cooled design, No water changes and no pump breakdowns.
4. High efficiency with low power consumption.
5. Modular component design, Dependable & reliable SMD technology.
6. With a warning alarm.
7. The wide power & voltage range make the machine can work from AC 200V to AC 240V.
Specifications
�軥ontroller
1. Voltage: AC 230V +/-10% 50/60HZ
2. Output: 1.47 KVA
3. Max. Power consumption: 6.4A
4. Weight: 24.20 kgs
5. Dimensions: (L) 300 mm x (W) 300 mm x (H) 470 mm
6. Speed: 0~19m/min.
P.S. Max. speed tested with PE bottle with 35mm(opening), bottom 85mm & distance in between bottles is 30mm.
�郿ealing head
1. Weight: 6.20 kgs
2. Dimensions: (L) 500 mm x (W) 200 mm x (H) 120 mm
3. Sealing Range: 20~60mm (Assigned sealing range is acceptable)
�軥onveyor (for LK-400C ONLY)
1. Voltage: AC 230V +/-10% 50/60HZ
2. Dimensions: (L) 1500 mm x (W) 200 mm x (H) 800 mm
3. Power consumption: 60 W
4. Speed: 0~20m/min. (Adjustable)
5. Stainless steel frame, adjustable side guides
