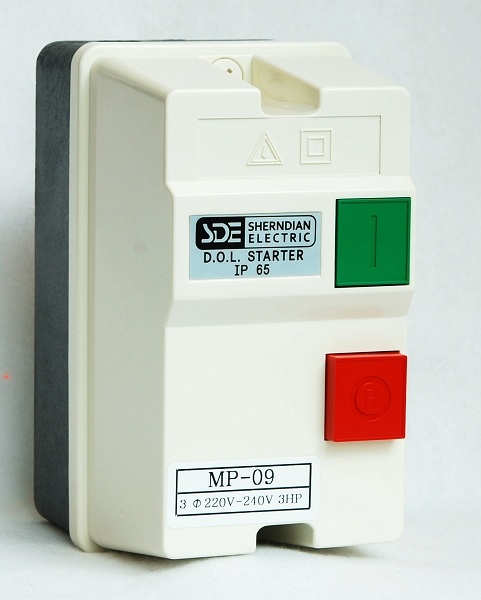

Magnetic Starter, MP-09, MP-09E
Model: MP-09, MP-09E
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
Feature:
1. Protection for dust and waterproof.
2. Both of raised OFF button and built-in ON push button for emergency.
3. Long mechanical and electrical endurance of contactor.
4. Elegant external, heavy duty life, easy operation.
@
Applications:
All machines used for motors are applied to MANUAL MOTOR STARTERS, such as: drilling Machine, press contour machine (band saw), tapping machine, conveyor, packing machine, air compressor, air pump, air conditioner and specific machine, etc.
Specifications
Bweq Rated Capacity |
HP | KW | |
1 Phase | 100~110V | 1 | 0.75 |
200~220V | 2 | 1.5 | |
T 3 Phase | 200~240V | 5 | 3.7 |
380~440V | 7.5 | 5.5 | |
500~550V | 5.5 | 4 | |
~ߧ Casing Material |
W: ABS U: PC+ֺ |
||
b(g) Net Weight |
844 |
||
~Τؤo(mm) |
(L) X 寛(W) X (H) |
||
E N~q۫O@. |
