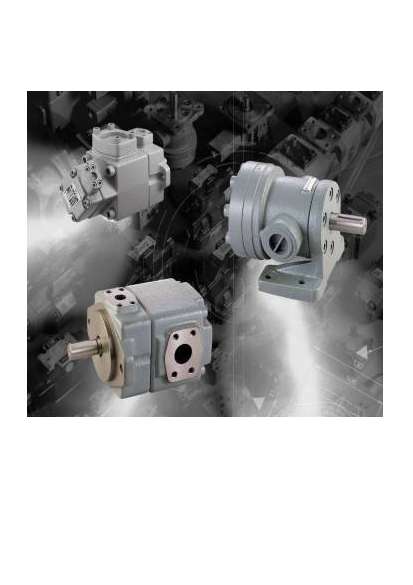

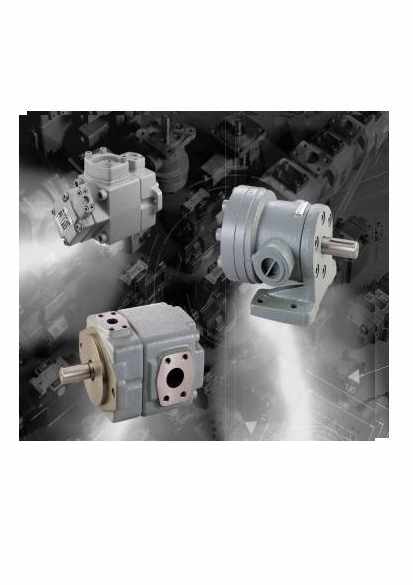

Fixed Displacement Vane Pump
Model: VCM-1M,2M,3M,12M,13M,23M / VCM-50T,150T series
Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Hydraulic Pumps
Characteristics
VCM-1M,2M.3M,12M,13M,23M Series
●High Pressure, High efficiency, applicable to
any kinds of machines.
●Low noise, agreeable to low-noise evironmental
requirement.
●Wide displacement range, from 5.8 c.c. to
116 c.c. satisfactory to all variety of
machinery design.
●Special Cartridge design, Easy Maintenance.
●Double pump could be designed for double
circuits or a circuit with cooling system.
Remark:
◎Test value of maximum pressure is based on
petroleum base hydraulic oil.
◎Masimum oil viscosity when operating with low
speed.
Speed 750 / 100 mm2/cSt.
Speed 950 / 200 mm2/cSt.
◎When the pressure is higher than 160 kgf/cm2,
the rotation speed should be higher than 1450
rpm.
VCM-50T,150T Series:
●VCM-50T & 150T pump have the characteristics
of diminishing the whirl in the hydraulic oil.
It is quiet when operating and efficient.
Suitable for being a low pressure pump in high
-low pressure system.
●Pressure balance structure produces lower axial
loading pressure, and longer service life.
Noise level is low.
●Pump structure is simple and easy for
maintenance. Flange mounting type could be
directly connected with electric motor.
Specifications
VCM-1M-6 (5.8 c.c./rev)
VCM-1M-8 (8.0 c.c./rev)
VCM-1M-10 (9.4 c.c./rev)
VCM-1M-12 (12.2 c.c./rev)
VCM-1M-14 (13.7 c.c./rev)
VCM-1M-17 (16.6 c.c./rev)
VCM-1M-19 (18.6 c.c./rev)
VCM-1M-23 (22.7 c.c./rev)
VCM-1M-25 (25.3 c.c./rev)
VCM-1M-31 (31.0 c.c./rev)
Shaft speed Min 750 rpm
Shaft Speed Max 1800 rpm
Max pressure 210kgf/cm2
※1M-31 Max pressure 160kgf/cm2
VCM-2M-41 (41.3 c.c./rev)
VCM-2M-47 (47.2 c.c./rev)
VCM-2M-53 (52.5 c.c./rev)
VCM-2M-59 (58.2 c.c./rev)
Shaft Speed Min 600 rpm
Shaft Speed Max 1800 rpm
Max pressure 210kgf/cm2
VCM-3M-76 (76.4 c.c./rev)
VCM-3M-94 (93.6 c.c./rev)
VCM-3M-116(115.6c.c./rev)
Shaft Speed Min 600 rpm
Shaft Speed Max 1800 rpm
Max pressure 210kgf/cm2
※3M-116 Max pressure 160kgf/cm2
VCM-50T-7 c.c./rev
VCM-50T-12 c.c./rev
VCM-50T-17 c.c./rev
VCM-50T-23 c.c./rev
VCM-50T-26 c.c./rev
VCM-50T-36 c.c./rev
Shaft Speed Min 600 rpm
Shaft Speed Max 1800 rpm
Max pressure 70kgf/cm2
VCM-150T-48 c.c./rev
VCM-150T-61 c.c./rev
VCM-150T-75 c.c./rev
VCM-150T-94 c.c./rev
VCM-150T-116 c.c./rev
Shaft Speed Min 600 rpm
Shaft Speed Max 1200 rpm
Max pressure 70kgf/cm2
Dobule Fixed Vane Pump
VCM-12M series
VCM-13M series
VCM-14M series
Shaft Speed Min 750 rpm
Shaft Speed Max 1800 rpm
