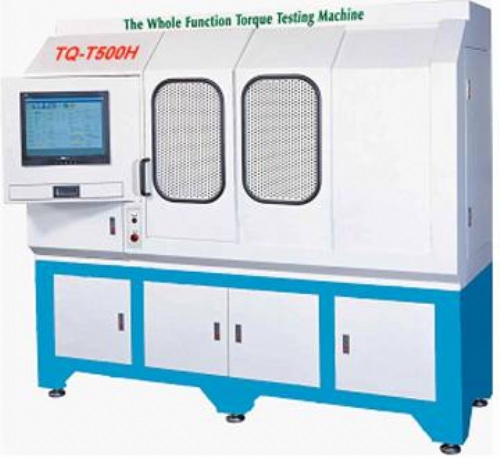

Multi-Function Torque Testing Machine
Model: TQ-T500HT
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
FEATURES：
1. UTILIZES HIGH SRENGTH ROLADRIVE SPEED REDUCER, POSSESSES STIFFNESS, DURABLE AND LOW NOISE BENEFITS, IT ENABLES TESTS SMOOTHLY.
2. POSSESSES VARIOUS PATENTS AND MAKES OPERATION MORE CONVENIENT.
3. EQUIPS WITH TWO PRECISE TORQUE SENSORS, ENABLES DIRECT MEASUREMENT WITHOUT SENSING INACCURACY.
Specifications
FUNCTIONS：
1. CAPACITY: 20KG-M, 500KG-M, EASY TO CHANGE THE CAPACITY.
2. TEST SPEED: ADJUSTABLE FROM 0 TO 4 RPM.
3. TEST STROKE: 600 MM
4. COMPUTER OPERATING SYSTEM: WINDOWS XP
5. LANGUAGE: TRADITIONAL CHINESE / ENGLISH
6. SERVO SYSTEM : REPUTED JAPANESE BRAND
7. AVAILABLE FOR FATIGUE TEST, DESTRUCTIVE TEST, ANGLE TEST AND TORQUE WRENCH TEST.
8. SAFETY STOP: AUTO STOP WHEN OVERLOADING, SPECIMEN DESTRUTE, SPECIMEN DEFORMED OR REACHED PRESET VALUE.
9. EDITIONAL CALCULATION FORMULA: USER CAN EDIT THE FORMULA ACCORDING TO HIS DEMANDS, CONFORMS TO VARIOUS TEST STANDARDS AND MEET CUSTOMER’S REQUIREMENTS FOR R&D.
10. IMMEDIATE & GRAPHIC DISPLAY: PROVIDES THE GRAPH FOR TORQUE-TIME, TORQUE-ANGLE, TORQUE-TIMES AND ANGLE-FTIMES, ETC…. IT CAN ALSO ONE BY ONE DISPLAY AND ANALYZE THE POINT.
11. RESOLUTION: 1/100,000
12. MACHINE SIZE: (L)2200MMX(W)750MMX1880MM
13. MACHINE WEIGHT: 1900KG
i. continued
14. POWER: 3Ø,AC 200 ~ 240V, 50/60HZ
15. PC SPECIFICTIONS:
I. INTEL DUAL CORE E5200
II. DDR2 2GB
III. ATIHD3450 512MB
IV. SATA2-320GB
V. DVD-RECORDABLE
VI. WINDOWS VISTA / XP
