NONE CONTACT PROFILE MEASUREMENT INSPECTION SYSTEM

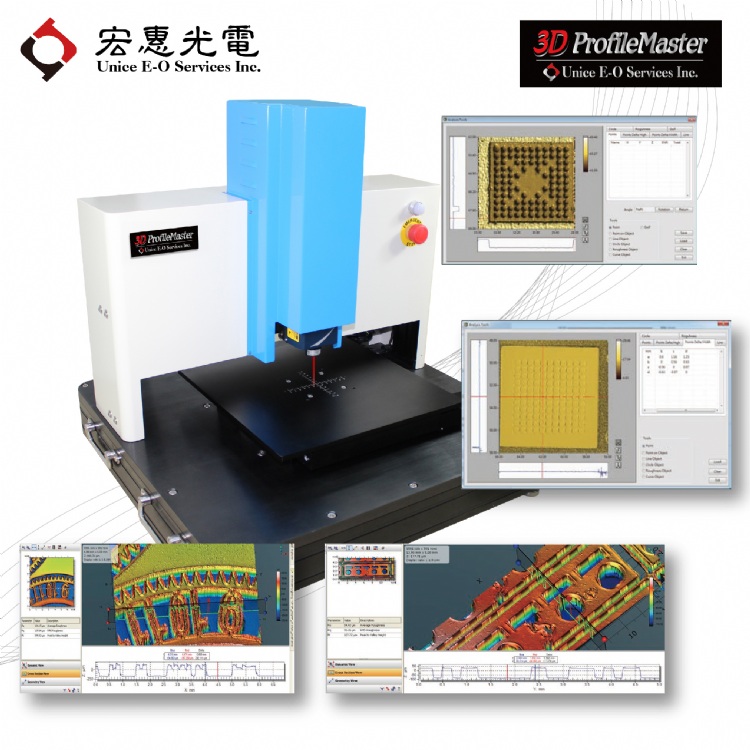

Model: 3D ProfileMaster
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
3D Profile Master is a high precision non-contact system, using collinear laser to perform measurements in a range of up to 180mm on Z axis with close to nanometer accuracy. Various materials can be measured and imaged in 3D, such as transparent glass lens, semiconductor manufacturing process blind hole, highly reflective metal, plastic, dark rubber, circuit board tine ball height and liquid heights. 3D Profile Master achieves any desired measurement results.
Traditional contact measuring method may not only cause damage on the product surface, but may also be time consuming. Thus, it cannot be applied on a production line for conducting whole inspection process. 3D Profile Master provides a high efficiency method to measure radius, diameter, angle, height, hole/trench depth, curvature, spherical curvature and distance. Full 3D CAD (Computer Aided Design) or other comparative measurement functions based on the software used and the stage of traveling range can be customized accordingly.
3D Profile Master is capable of effectively enhancing the detection rate, without leaving any injury or damage on the sample, which is perfect for quality control and manufacture process monitoring. Since measuring results are available at any time, production process can be adjusted for instant improvements, while greatly reducing the product defective rate and the cause of extra costs.
Specifications
