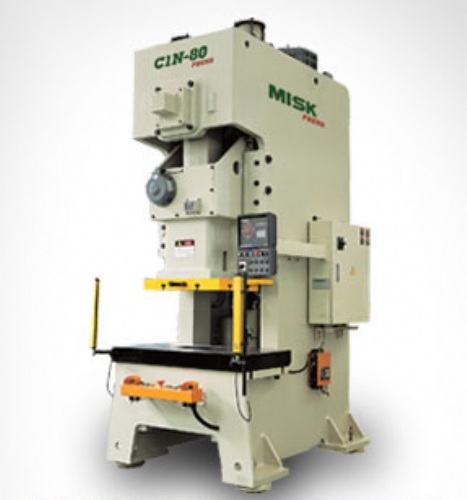

C1N Series Single Crank High Precision Press
Model: C1N,OCP,SN1,NCP,APA,ICP,FCP,FCH,J21,NC1,HCA
Category: Machine Tools / Metal Forming Machine Tools / Precision Power Presses
Characteristics
Safe and reliable operationHigh sensitive clutch/braking device added international-level twin-body electromagnetic valv...
Model Features：
Safe and reliable operation
High sensitive clutch/braking device added international-level twin-body electromagnetic valve and over-loading protection device can guarantee the sliding boards running and stop with high precision and safe performance.
Brake
C1N series are equipped with advanced dry brake clutch, with TACO sensitive??double electromagnetic valve is from Japan. It can reduce the braking time in maximum. In addition, the brake assist system with a second device in emergencies, when detected brake cannot stop, it will again provide the brake signal to once again provide the brake signal to provide sufficient guarantee timely and accurate braking force.
The protection of users
C1N series in the design stage, the highest degree??s user protects is also the MISK biggest goal. Therefore, between the button operation of hands and the fuselage should left enough space to protect the safety of staff, simultaneously, the system provides for the design of the both hands concurrent operation can start, to ensure that caused so as to avoid misuse of personal injury. The electro-optic protective device or safety net??s addition further enhanced to the user the protection.
Mold Protection
C1N series of press are standard in the import of devices to protect the load due to overload stamping presses, the deformation caused by mold damage, while also mistakenly sent to the installation of the devices can be detected with automatic stamping die devices, to better protect the mold.
Solid and durable
High rigidity and high precision frame, use welding steel sheet with hot-treatment, eliminated the internal stress of the press machine.The structural parts have proportional loading and balanced rigidity.
High quality materials
MISK C1N campaign in all the materials are similar products in the highest levels of material, such as the motherboard is baogang, the crankshaft is 42CrMo; the hardware part basically uses the overseas import high quality the product, like bearing completely for Japanese import bearing and so on.
High precision with high stability
The friction areas of crankshaft, gear, gear shaft etc. are hardening hot-treated, then grinding processed, so having high wearesisting and balancing performance with stable functions.
High precision density
MISK-CIN series on the gear, crank and other parts precision grinding through the whole process, the mainly imported parts use all the high-end CNC machining equipment, production, ensure the complete machine to achieve Japan first-level curacy standard.
Accessories(Standard) :
Hydraulic Over-Load protector
Side Adjust Device(C1N below 60)
Slide Adjust Device(C1N 60 or more)
Die Height indicator(C1N60 below 60)
Die Height indicator(C1N 60 or more)
Balace Device
Rotary Cam Switch
Crank Angle indicator
Electrical Stroke Counter
Air source Receptacle
Against Over-run Safety Device
Maintenance Tool Box
Operation Manual
Accessories(Optional) :
Electrical Automatic Lubrication System
Pneumxtic Die Cushion Device
Inverter
Preset Counter
Preset Counter
Foot Switch
Die Room Lidht
Silde Knock-out Device
Misfeed Detection Press Mount
Power Supply
Auti-Vibration Press Mount
Photo-electronic Safety Device Feeder
Uncoiler
Leveler
Quick Die Change Dievice(Die Litter Clamp And Die Arm Sepjes)
Mechanism Hand
Specifications
C1N Series High Precision Press TechnicalParameter
Specification C1N-15 C1N-25 C1N-35 C1N-45 C1N-60
Model V S V H S V H S V H S V H
Capacity (Ton) 15 25 35 45 60
Rated tonnage point (mm) 1 3.2 1.6 3.2 1.6 3.2 1.6 4 2
Speed Changing ( s.p.m) 120-180 100 60-140 130-200 80 40-120 110-180 70 40-100 100-150 60 35-90 80-120
Intermittent ( s.p.m) 50 50 40 35 30
Stroke (mm) 60 60 30 70 40 80 50 120 60
Die height(mm) 200 200 215 220 235 250 265 310 340
Slide adjustment (mm) 50 50 55 60 75
Slide area (mm) 300*220*50 300*220*50 360*250*50 400*300*60 500*360*70
Bolster area (mm) 550*300*70 680*300*70 800*400*70 850*440*80 900*500*??0
Shank Hole(mm) ø38.1 ø38.1 ø38.1 ø38.1 ø50
Main Motor(k.w.p) 2.2*6 VS3.7*4 VS3.7*4 VS5.5*4 VS5.5*4
Slide Adjust Device HP manual operation
Air Pressure (kg/cm2 ) 6 6 6 6 6
Presses Precision GB(JIS)1class GB(JIS)1class GB(JIS)1class GB(JIS)1class GB(JIS)1class
Presses dimension (mm) 1236*856*1920 1280*850*2200 1380*900*2400 1600*950*2500 1600*1000*2800
Presses weight(Ton) 1.8 2.1 3 3.8 5.6
Die cushion capacity (Ton) - - 2.3 3.6 3.6
Storke (mm) - - 50 50 70
Die cushion effective area (mm2) - - 300*230 300*230 350*300
C1N Series High Precision Press Technical Parameter
Specification C1N-80 C1N-110 C1N-160 C1N-200 C1N-260
Model S V H S V H S V H S V H S V H
Capacity (Ton) 80 110 160 200 260
Rated tonnage point (mm) 4 2 6 3 6 3 6 3 7 3.5
Speed Changing ( s.p.m) 60 35-80 80-120 45 30-60 60-90 35 20-50 40-70 35 20-50 50-70 30 20-40 40-50
Intermittent ( s.p.m) 30 25 20 20 15
Stroke (mm) 150 70 180 80 200 90 200 100 250 150
Die height(mm) 340 380 360 410 460 510 460 510 500 550
Slide adjustment (mm) 80 80 100 110 120
Slide area (mm) 560*420*70 650*470*80 700*550*90 850*630*90 950*700*100
Bolster area (mm) 1000*550*90 1150*600*110 1250*800*140 1400*820*160 1500*840*180
Shank Hole(mm) ø50 ø50 ø65 ø65 ø65
Main Motor(k.w.p) VS7.5*4 VS11*4 VS15*4 VS18*4 VS22*4
Slide Adjust Device HP manual operation
Air Pressure (kg/cm2 ) 6 6 6 6 6
Presses Precision GB(JIS)1class GB(JIS)1class GB(JIS)1class GB(JIS)1class GB(JIS)1class
Presses dimension (mm) 1800*1180*2800 1900*1300*3200 2300*1400*3800 2615*1690*4075 2780*1850*4470
Presses weight(Ton) 6.5 9.6 16 23 32
Die cushion capacity (Ton) 3.6 6.3 10 14 14
Storke (mm) 70 80 80 100 100
Die cushion effective area (mm2) 450*310 500*350 650*420 710*480 810*480
