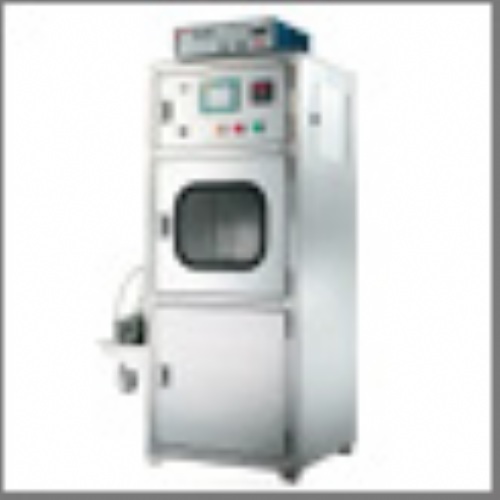

Touch Screen Servo Hard-coating Machine
Model: HS-888
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Surface Finishing Equipment
Characteristics
Utilizes Japanese Mitsubishi servo motor, CNC grade screw roller ball linear sliding track module. It achieves stable and precision performance during production process. Man-machine touch screen control system may be adjusted to 12 stages of variable speed to test the speed at each stage and positioning. The memory module may save 50 sets of product production values and conditions to save equipment adjustment and test time that are used to produce similar products. It has more convenient and clear operation than normal conventional models. Dual filtration, sloped tank system can speed up filtration performance fast.
Specifications
Model No. HS-888
Size 800 x 760 x 1960mm ( L x W x H )
Weight around 250KG
Materials The enclosure of the machine SUS304 stainless steel
Monitor Taiwan's first touch control operation screen.
Voltage Single phase 220V
Operation power supply 220V
Power 2KW
Air discharge fan 220V / 25KW
Server motor 220V / 400W
Filter motor 220V / 90W
Rotary lift motor -
Ultrasonic Server 220V / 1200w
Motor speed Motor speed adjustment Lift up is 10 stage speed adjustment. Lowering down is 2 stage speed adjustment.
Capacity 90~120 frame/hour
