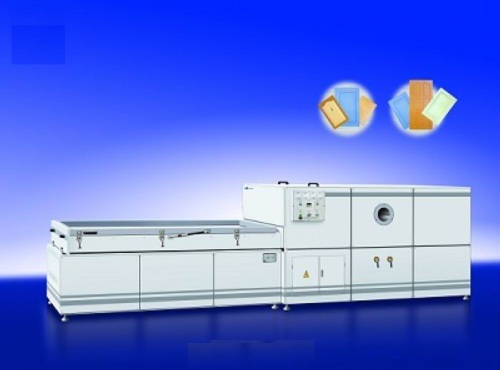

WV2300A-1 Vacuum Curved Surface Covering Machine(horizontal type double box single position)
Model: WV2300A-1
Category: Woodworking Machinery Industry / Woodworking Machinery Component / Woodworking Machinery Component
Characteristics
Function
It can be used for covering PVC on the surface of art compound door,furniture ,cabinet and sound box,ect.With the help of silicon membrane provided by our firm,it can be used for covering solid wood skin and heat transfer on the single side of solid wood core board and furniture,etc.
Characteristics
1. Stailess steel calorific element can make the heating even and improve sfficiency.
2. Double-layer heat preservation and full sealed design with new material can save energy
3. Special steel worktable is proof against high temperature and corrosion
4. Germany vacuum pump,which is efficient,stable and long life.
5. Advanced digital control technology,high automatic lever and easy operation
6. Lots of product series can meet different customers’demand
Technical Features
Overall dimensions 5500*1450*1400mm
Working size 2300*1100mm
Total power preparation :10kw
working:3kw
Vacuum: -0.1Mpa
Weight:1500kg
Specifications
Overall dimensions 5500*1450*1400mm
