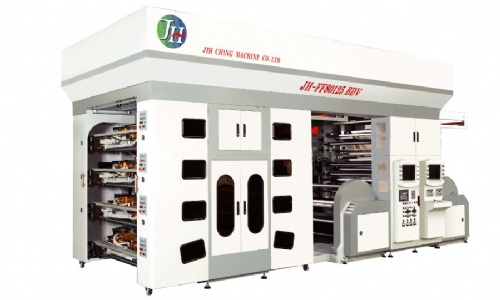

Flexo Printing Machine , Doctor Blade type
Model: JH/FF-80125BDV
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Flexographic Printing Presses
Characteristics
The high speed advanced flexo soft packing printer
It uses the PLC memory module type servomotor auto position control system.
And have the high accuracy Doctor Blade chamber system and the ceramic anilox roller, line speed controlled by harmony synchronous driving system, monitoring with single chip advanced print inspection system, suitable for superfine printing quality.
Specifications
1. FCD-45 cast iron machine frame, vibration-free at high speed operation.
2. Main motor by using servomotor, driven by timeing belt, quite and precise.
3. Precise Doctor Blade Chamer system with ceramic anilox roller, suitable for superfine printing quality.
4. PLC memory module type (300sets) servomotor auto position control system for impression adjustment.
5.Printing roller, in-feed and out-feed are driven by servomotor.
6. Automatic tension control plus magnetic powder brake on unwind and rewind.
7. EPC electronic type automatic edge position control.
8. Multi-chip advanced print inspection system, with full color LCD monitor.
