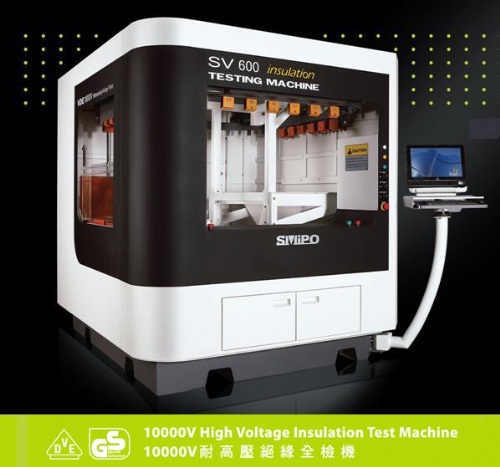

INSULATION TESTING MACHINE
Model: SV-600
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
User friendly interface:
Touch screen running Windows XP makes most friendly interface.
Traditional Chinese-English bilingual interface (other language setable).
Data base saves all data. Print form can be user's design.
Safty shut off:
Equipped with safety switch to avoid thrunder strike,
and anti-clamp device to keep away from danger.
Currents leakage and short circuit warning and shut off.
Production efficiency:
It's easy to set testing time. 16 groups of products can be tested
at the same time to increase production capacity.
Precise testing:
Up and down moving, upright test position can decrease vibration to assure test accuracy.
0V-10,000V adjustable voltage testing.
Breaking current 0.5-10MA is adjustable.
Testing time can be set by the user.
The screen shows test voltage and value of current.
Test tank refill water automatically to decrease error.
Category sifting:
The computer divides GO and NG automatically to the conveyor.
Test report screen shows lot No., good products, NG quantities.
Drying treatment:
The machine can connect to drying conveyor.
Pass inspection products go directly to drying treatment.
Specifications
TEST VOLTAGE: 0~10,000V, ADJUSTABLE
TEST CURRENT: 0.1~10MA, ADJUSTABLE
TEST SPEED: 16 PCS EACH TIME
TEST TIME: ADJUSTABLE
MOTOR: JAPANESE SERVO
DIMENSION:2570mm(L) X 2350mm(W) X 2200mm(H)
WEIGHT: 2,500KG
INPUT: 3X, AC200~240V, 50~60HZ
TEST PRODUCTS: INSULATED PRODUCTS COMPLYING WITH IEC 60900
