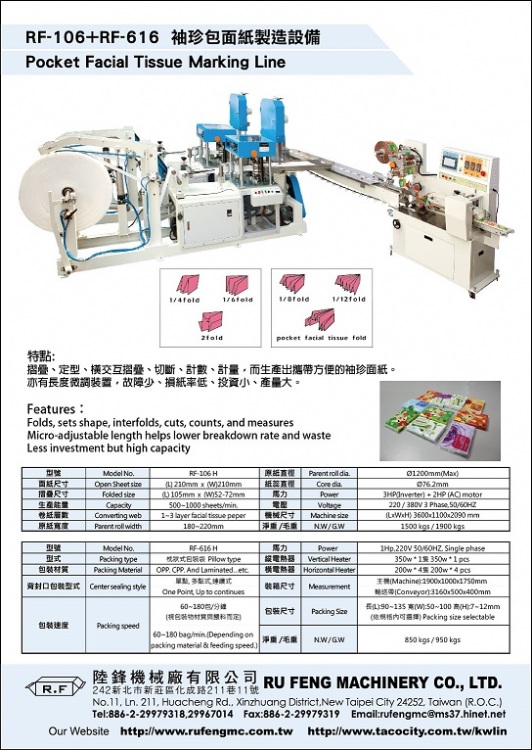

Pocket Tissue Wrapping Machine
Model: RF-616
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Other (Packaging Machine)
Characteristics
* Length Display easy for operation
* Speed Control
Any desired production rate within the range of 25-200 pack per minute may varied
infinitely by means of a single dial knob.
* Temperature control
Independent Temperature control for each sealer to make the best sealing and handle
awide variety of flexible packaging materials.
* Photo detector (optional spare)
Built-in high sensitivity high respond photo detector insures correctly positioned, even at
sigh speed operation.
Features:
a. Special Round Bag Former: Paper Towels can be close-packing, nice shape.
b. Prevent device by mistake: paper towel after entering the bag once again positioned to
prevent false positives.
c. With needle puncher release air easily for packing in cartons.
d. End sealed using a special fine thread sealing: paper towel bags, more beautiful
e. Back round sealer using a special flower round: bag back into a single point, multipoint
or straight line style making the back more selective beauty.
Specifications
Model: RF-616 Pocket Tissue Wrapping Machine
Packing Type: Pillow Type
Packing Speed: 60~180bag/min(Depending on packing material & feeding speed)
Packing Size: L90~135mm W50~100mm H4~12mm (Packing Size selectable)
Packing Material: OPP, CPP and laminated...etc heat sealable film
Main Drive Motor: 1HP, 220V Single Phase
Control Motor: Photo sensor Motor 40W*1 Bag Length Motor 15W*1
Vertical Heater: 350W*1pc
Horizontal Heater: 200W*4pcs
Center sealing style: one point, up to continuous
Measurement: Machine 1900 x 1000 x 1750mm (GW 800kgs)
Conveyor 3160 x 500 x 400mm (GW 150kgs)
Net Weight: 850kgs
Gross Weight: 950kgs
