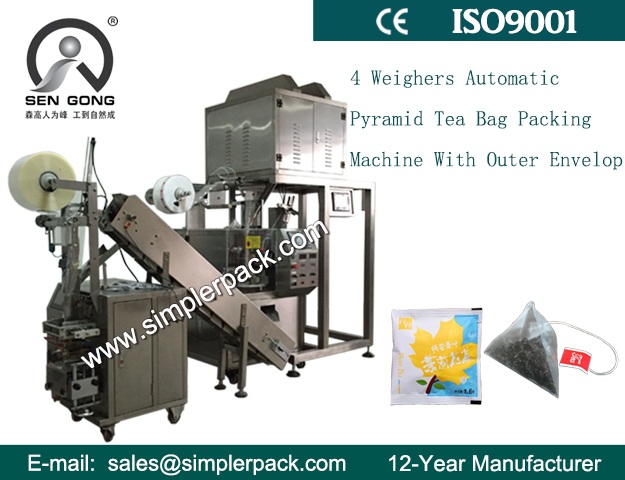

Automatic Pyramid Nylon Jasmine Tea Bag Packing Machine with Outer Envelope

Enlarge

Automatic Pyramid Nylon Jasmine Tea Bag Packing Machine with Outer Envelope

Model: C21DX

Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Blister & Strip Packaging Machines

Online Inquiry

Characteristics

1) Automatic multi function packaging forming machine;
2) Suitable for all kinds of drinking tea leaves, herbs and flowers;
3) Ultrasonic sealing for inner bag; Pyramid bag type;
4) Nylon(PLA/non-woven); with outer envelope; with thread and tag;
5) High quality with international brand-name parts;
6) All-round process: filing, weighting, bag forming, sealing, cutting and counting etc.
7) International Approval : ISO9001:2008
8) Quality Approval : Certification of Compliance
9) Manufacturing experience : 12 Years

Specifications

C21DX Automatic Pyramid Tea Bag Packing Machine with Outer Envelope

Application:

It is suitable for inner and outer teabag packaging for products such as loose leaf tea, herbal tea, health care tea, flower tea, and Chinese local tea like Tieguangyin, Longjing, Damaofeng, Dahongpao, etc.

Technical data:

Type:	Tea Bag Packing Machine Series
Machine Model:	C21DX
Product name:	Automatic Pyramid Tea Bag Packing Machine with Outer Envelop
Packing speed:	30～50bags/min
Filling range:	1～10g
Accuracy:	±0.1g/bag
Packing roll width:	140, 160, 180(mm)
Outer bag size:	W:80-100mm, L: 90-120mm
Sealing method:	Cutting and sealing by ultrasonic
Quantity of seal device:	2sets
Power supply:	220V , 50Hz, 1.85KW
Air supply:	0.6MPa (can be quipped with air compressor)
Dimensions:	30009002300mm(LWH)
Weight:	500KGS

//Features: //
1.The packing material of the pyramid packaging bag is nylon, non-woven fabric imported from Japan, which is non-toxic, non-bacteria, heat-resistant and high quality food-grade material, conforming to our national safety inspection standard.
2.The machine uses a unique sealing method--ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.
