10.4 inch 1024x768 Capacitive Touch Screen Open Frame Display

Enlarge

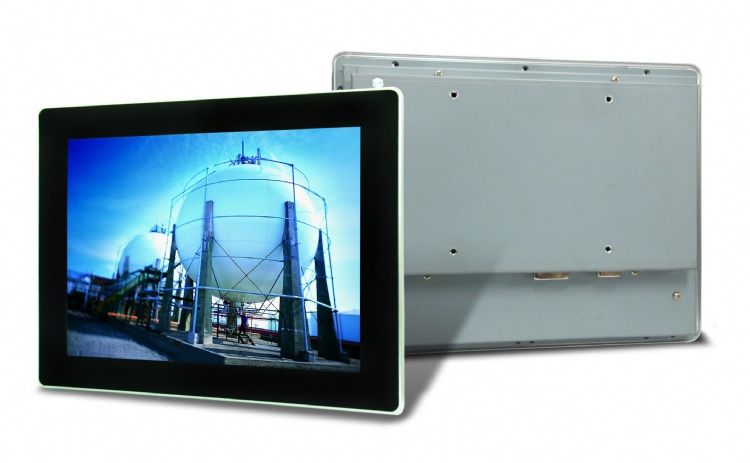

10.4 inch 1024x768 Capacitive Touch Screen Open Frame Display

Model: LOF104X13P-00R

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Online Inquiry

Characteristics

LOF104X13P-00R, 10.4" full flat open frame monitor with HDMI/ DVI/ VGA input and optional with PCAP MULTI TOUCH. Unlike average PCAP Open Frame, the design of metal frame around PCAP can efficiently reduce exterior interference. Integration of such work can save users development time and expedite the commercialization of prototype. Suitable for versatile applications such as Automation, Kiosk, POS machines or even more.

Specifications

10.4" Full Flat Capacitive Touch Screen LCD Display Open Frame

1. Key Features

LOF104X13P-00R, 10.4" Full Flat Open Frame monitor with HDMI/ DVI/ VGA input and optional with PCAP MULTI TOUCH. Unlike average PCAP Open Frame, the design of metal frame around PCAP can efficiently reduce exterior interference.

Integration of such work can save users development time and expedite the commercialization of prototype.

It is suitable for versatile applications such as Automation, Kiosk, POS machines or even more.

2. Product Specification

Size	10.4 inch
Model Name	LOF104X13P-00R
Display Format (H x V)	1024 x 768
Aspect Ratio	4:3
Brightness	348 nits
Contrast Ratio	500
View Angle	75/75/60/80
Input Signal System	HDMI/ DVI/ VGA
Outline Dimensions( W x H x D)	265.8x213x45.7 mm
Touch Screen Panel (USB/ RS232)	PCAP 2 Points (USB)
Operation Temp.	-20~+70 ℃
Audio Amplifier	1W@8Ω / 2W@4Ω
Audio 3.5Φ Jack (Line-In) / Out)	Line-In

3. Advantages

---Simple Bracket for Protection

---Reduce the EMI or interference

---Without MOQ & Short lead time

---Ready Front Cover for easy mounting

---Plug and Play

4. Pictures and Installation

Full Flat Front.png Full Flat Back

Panel Mount.jpg

5. Certification

FDT ISO-9001 2008(2013-2016).JPG FDT-ISO 14001(2015-2018).jpg

6. Trade Terms

1. Payment Terms: T/T In advance

2. Delivery: Lead time for Sample/ Small Quantity: 2-4 weeks.

Lead time for Mass Production: 6-8 weeks

3. Validity: Within 30 days since quotation date

4. Incoterms: EXW/ FOB Taiwan

5. Warranty: 1 year

7. Contact

Flat Display Technology Corp. is one professional TFT LCD solution provider and having more than 25 years' experiences. We believe you will be satisfied with our products if you are searching for a reliable supplier in this field. Specialize in TFT range from 3.5"-17". Should you need any assistance, please feel free to contact us. http://www.fdt.com.tw/
