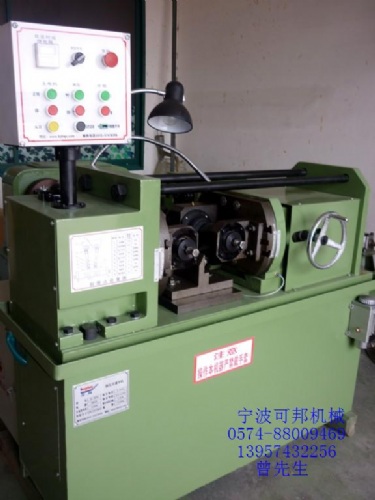

Rolling machine, rolling machine, screw machine tools, the whole tooth rolling machine
Model: H-30A
Category: Automatic/Industrial Machines & Equipments / Bolt, Screw & Nut Making Machines / Automatic Thread Rolling Machine
Characteristics
Rolling machine, rolling machine is divided into: two-axis eccentric, two-axis roll formula, the two-axis hydraulic, two-axis hydraulic roll formula, three-axis cam, three-axis hydraulic, multi-axis hydraulic roller formula Section models. Processing thread rolling die when installed in the two-axis, respectively, three-axis machine with the axis of rotation, extrusion thread forming, thread rolling with different roll switch to a different model specifications. Machinable triangular thread, ladder pattern, ruled, reticulate, twill, etc.
Specifications
Parameters
Rolling the workpiece
Thread Range
Maximum diameter
Radial feed: ∮ 36mm
The maximum radial feed pitch: 4.0mm
∮ 54 mm diameter two-wheel
Two wheel diameter ∮ 120 - ∮ 170 mm
Two wheel center distance range 125-225 mm
Thickness range of 30-100 mm two wheel
The maximum hydraulic force 120 Kn feed
Two-axis tilt angle ± 5 °
Two-spindle speed (rpm) (change gear) 37/46/63/79
Hydraulic automatic hydraulic roll adjustment range to the time of 0.1-99.9 s
Hydraulic stop 0.1-99.9 s
Mechanical drive motor 4.0KW/1450 r / min
Hydraulic motor 2.2KW/1450r/min
Weight 1100KG
