H fin tubes in tube heat exchanger economizer for industrial boiler

Enlarge

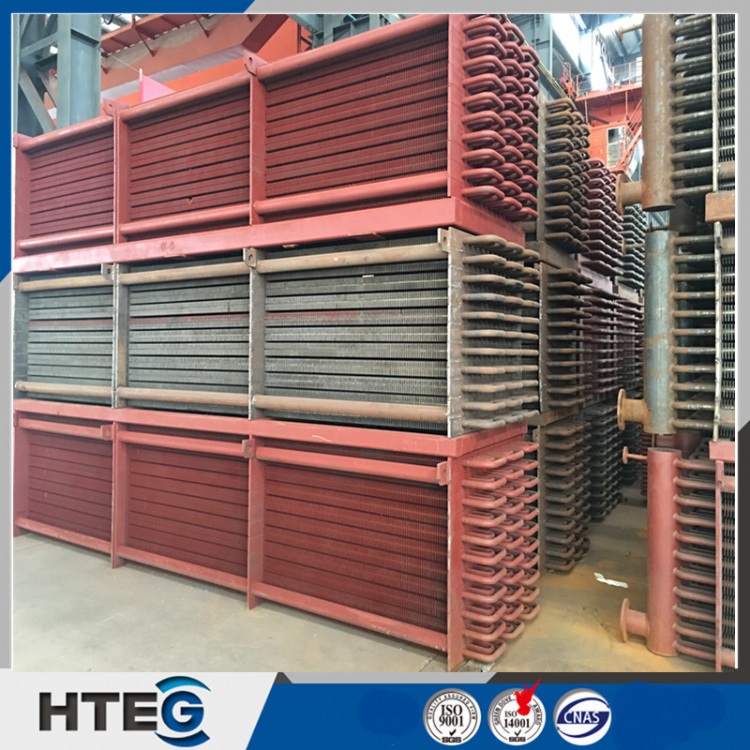

H fin tubes in tube heat exchanger economizer for industrial boiler

Model: customized

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Assembly Lines

Online Inquiry

Characteristics

Features:

Because the spiral finned province coal equipment has high heat intensity per unit length, compact structure, material saving, wear and corrosion resistance, prevent ash performance is good, safe operation cycle is long, maintenance costs, high running economy etc.So both boiler economizer replace the generation of a structure, promoting technical progress, a new type of heating equipment, energy saving and emission reduction is worth popularizing vigorously

Specifications

H Fin tubes in tube heat exchanger economizer for industrial boiler

Fin tubes in tube heat exchanger economizer has won the title of high-tech products, and received a patent for utility model and design.

H-economizer, also known as H-fin tube, H-type finned tubes, it is to have between two steel circular symmetry with fluorescent tubes welded together to form fins (fin-or butterfly-chip) positive shape Much like letter "H", so called H-fin tube..

It is a kind of boiler parts, to have two steel circular symmetry to be welded on fluorescent tubes to form fins
positive shape much like letter "H", so called H-fin tube. H-economizer widely used in utility boilers, industrial
boilers, marine power, such as the tail of heat exchanger components.

Parameters:

*H/HH fin tubes.*
*Application*	It is widely used for Heat exchanger ,Air-conditioner ,Refrigerator,Economizer and other parts of Heat Industry.
*Material of base pipe*	Carbon &Alloy steel, or Stainless
*Material of fins*	Carbon &Alloy steel
*Type of base pipe*	Seamlesss,Welded
*Type of fins*	H or Double H
*OD of Base pipes*	15mm-219mm
*WT of base pipes*	1.5-6mm
*Height of fins*	8mm-30mm
*WT of fins*	0.6mm-3.0mm
*Pitch of fins*	2.5mm-20mm
*Length of blank area*	according to Customer's request.
*Length of finned tubes*	≤23m
