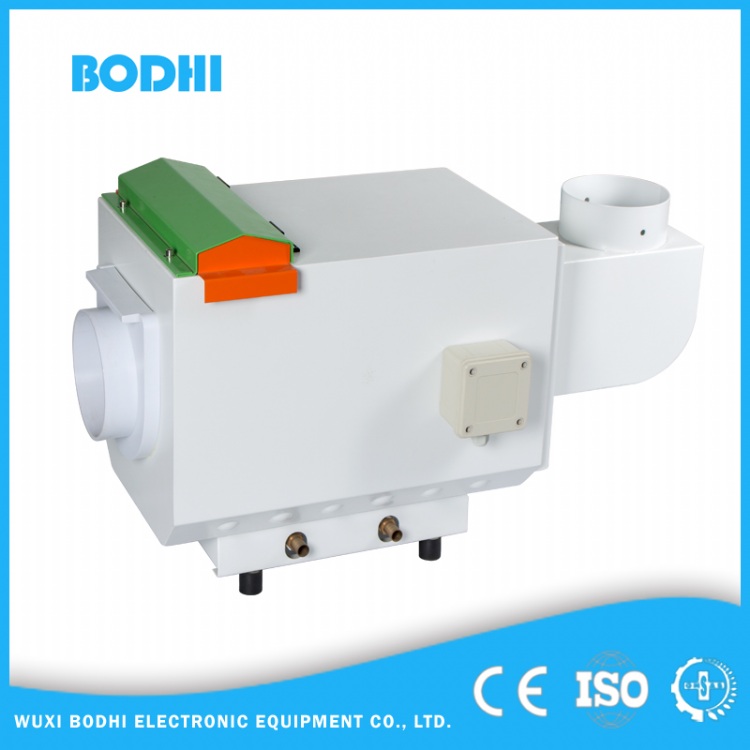

Industrial oil filters centrifugal oil mist collectors
Model: HCY-W5
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Air Pollution Control Equipment
Characteristics
1.Filter---Adopt four filter layers,Inner loop filter canbalance the oil mist filter peak
and off peak in the process of work, ensure the filter efficiency.
2.Energy-saving ----After purification, the air can be used for the interior circulation, the separated oil into the collector drum, it can be used again.
3.High performance---HCY-W5 series are specially designed for oil mist pollution: Easy maintenance.
Specifications
The product Description
The filtering efficiency: PM2.5A99%FPM0.5, 95%.
Input: 220/380V/3p 50Hz(customized^
Working noiseG<=60dbA
Way in: Horizontal
Way out: Vertical
Installation form: Top-mounted or side-mounted
Shell Life: 20 years
Environment temperature:-10J-50J
Environment humidity: <=80H
Brand Name |
BODHI |
Application |
All kind industries and machine tools |
Model |
HCY--W5 |
Volume(m3/h) |
800-1800 |
Pressure(Pa) |
650-1500 |
Power(W) |
550-1500 |
Voltage(V) |
380 |
Current(A) |
1.35-5.96 |
CNC Volume(T) |
2-7 |
Weight(kg) |
40-60 |
Installation |
Horizontally-mounted |
Material |
Superior alloy steel |
Filter Life |
8-12months |
Filtering Principle
1.Primarily efficiency filter(metal)
2.Mechancial filter
3.Core Filter
4.Efficiency Filter--HEAP Filter(optional)
Working Principle
At first, Inhalation of mist and dust is impact with strike plate ,intercept most solid particle,form the first filter.Then remove most of the fog substance by the second and third filter. Then the processed gas is high-speed rotating through impeller. Formation of airflow swirl make the missing tiny particles further bigger ,intercept by the filter screen,form the three filters.Three filter screen for three layer structure,can separate and collect the different size mist.
