2-CH Gigabit Ethernet Frame Grabber Supporting Power over Ethernet

Enlarge

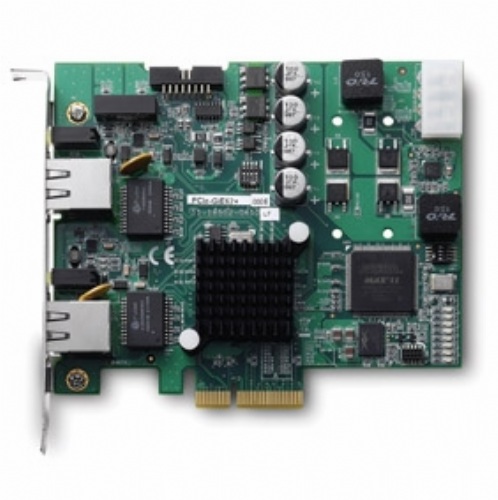

2-CH Gigabit Ethernet Frame Grabber Supporting Power over Ethernet

Model: GIE62+

Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts

Online Inquiry

Characteristics

ADLINK's GIE62+ is a PCI Express® x4 lane, PoE (Power Over Ethernet) interface card, which supports two independent Gigabit Ethernet ports for multiple Gigabit Ethernet Vision device connections with data transfer rates up to 1000 Mb/s, as found with most Gigabit Ethernet Vision cameras. The GIE62+ features a single cable solution through the combination of power and data lines, simplifying installation, lowering maintenancing, and reducing total cost of ownership.

Specifications

● Form Factor：PCI Express® x4
● Ethernet ports：two fully-integrated Gigabit Ethernet Media Access Control(MAC) and physical layer(PHY) ports. Power over Ethernet, IEEE 802.3af Compliant, support class 0, 1, 2, 3, and 4, and provides up to 15.4 watts. 9kB jumbo frame support.
● Isolated Voltage：1000V@60seconds
● Operation Enviroment：Temperature 0~55度C、Humidity 5%~90% RHNC
● Power Requirement：+12V max @ 0.2A, +3.3V max @ 1.5A
● Dimensions：129.5 x 111.15mm (W x L)

【Features】
● PCI Express® x4 compliant
● Supports two independent Gigabit Ethernet ports
● Supports PoE (Power over Ethernet), IEEE 802.3af compliant
● Supports jumbo frames (9 KByte)
● Supports Link aggregation
● Powered Device (PD) auto detection and classification
● Provides industrial screw lock connector
