ADLINK High-speed 200 MS/s 14-bit PCI Express Digitizer

Enlarge

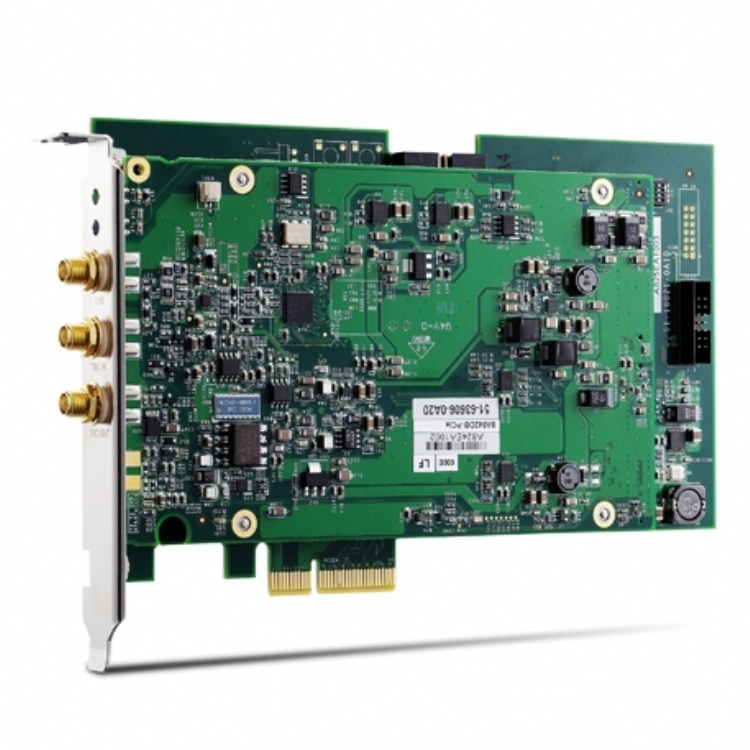

ADLINK High-speed 200 MS/s 14-bit PCI Express Digitizer

Model: PCIe-9842

Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts

Online Inquiry

Characteristics

The ADLINK PCIe-9842 is a 200 MS/s 14-bit 1-CH digitizer designed for applications such as LIDAR testing, optical fiber testing, and radar signal acquisition. The 100 MHz bandwidth analog input with 50 ohm impedance is designed to receive ¡Ó1 V high speed signal. With this simplified front-end design and high stable onboard reference, the PCIe-9842 provides not only high accuracy measurement results but also delivers high dynamic performance.

For applications that require data to be acquired and transferred in real-time, the PCIe-9842 utilizes the PCI Express x4 bus as its interface. When signals are converted from analog to digital data, the data will be transferred to host system memory continuously because of the high bandwidth of the PCI Express. For applications that require data to be acquired and transferred in real-time, the PCIe-9842 utilizes the PCI Express x4 bus as its interface. When signals are converted from analog to digital data, the data will be transferred to host system memory continuously because of the high bandwidth of the PCI Express.

Specifications

Up to 200 MS/s sampling rate
High resolution 14-bit ADC
±1 V Input range with 50 Ω input impedance and DC couple
Up to 100 MHz bandwidth for analog input
High speed PCI Express x4 bus interface
Scatter-Gather DMA data transfer for high speed data streaming
One external digital trigger input
Digital trigger output to stimulate external instruments
