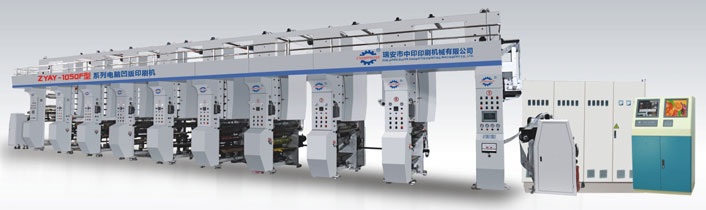

Gravure Press
Model: ZYAY-1300F
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Rotogravure Printing Press
Characteristics
Main technical parameters：
Printing number： 8 color
Max. printing width： 1300mm
Max. mechanical speed： 220m/min (Cylinder ¢170mm)
Max. printing speed： 200m/min (Cylinder ¢170mm)
Plate cylinder diameter： ¢120-¢330
Diameter of unwind and rewind units： ¢600mm
Register accuracy： ±0.12 mm (Longitudinal and transverse )
Tension control range： 3-25kg
Tension control accuracy： 0.3kg
Paper core： inner ¢ 76, outer ¢ 92mm air expanding shaft
Impression pressure： 380kg
Doctor blade transverse movement： ±5mm
Electricity consumption for drying： 240KW
Air source Minimum pressure： 0.8Mpa
Cooling water consumption： 7.5T/H
Main motor power： 22kw
Electric power at steam heating： 85kw
Electric power： 280kw
Size of overall machine： 18800LX3200WX3400H
Printing material：
BOPP /OPP /CPP： 15-60μm,PET 12-60 μm,NY PA 15-60μm,Cellophane 20-30μm
PVDC/PO/PVC： 40-70μm, PE 30-100μm, Paper roller:30-70g/m2
Compound film： 25-60μm
