deep hole honing machine
Model: 2MS2150
Category: Machine Tools / Grinding Machines / CNC Grinding Machines
Characteristics

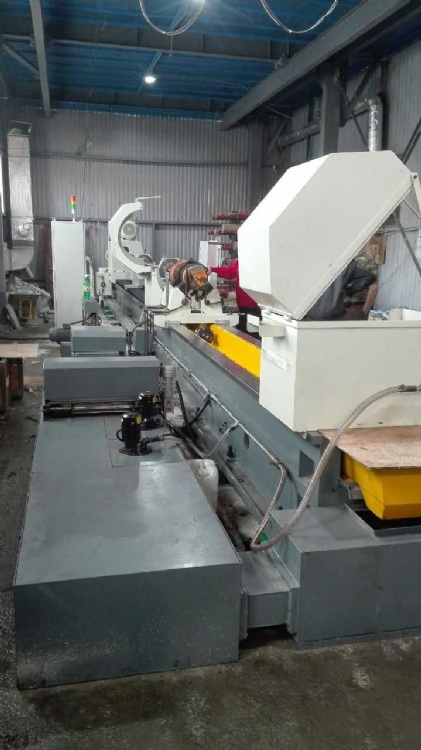

2MS2150 powerful deep hole honing machine
IBFeatures of machineG
2MS2150 CNC powerful deep hole honing machine is a kind of special machine to process round deep hole . Workpiece will be fixed and honing head will rotate and reciprocately move. It is especially good to process non-rotate work piece such as square work piece, outside welded rotating axle or flanged work piece.
Rotation of honing head is AC stepless speed regulation. reciprocate movement is AC servo stepless speed regulation. The work piece will be fixed by a chian .
Work piece surface roughness after precise honing Ra≤0.2gm, roundness≤0.04-0.06mm
This machine has time relay and totalizer and it can control honing time and honing reciprocate times according to set value.
Matched special alloy honing tube.
II The basic technical parameters of 2MS2150 deep hole honing machine
Honing hole diameter rangeKKKKKKKKK100-650mm
Honing maximum depthKKKKKKKK 12m
(The honing maximum depth may according to the user request )
The spindle height of centerKKKKKto carriage bed body guide way 250mm
to work piece bed body guide way 450mm
Clamp workpiece diameter rangeKKKKK150-600mm
Honing stem box spindle rotating speed rangeKKKKK25X250r/min r/min(infinite)
Reciprocating movement speed rangeKKK3-20m/min(Stepless speed regulation)
The maximum traction of reciprocating movementKKKKK30KN
Honing head expanding system pressureKKKKK0.3-10Mpa
Main motorKKKKK15kw(Ac spindle motor)
Reciprocating motorKKKKK7.5kw(Ac servo motor)
Cooling pump motorKKKKK250W X2
Cooling system flowKKKKK100 x2 1/min
Honing head expanding oil pump motorKKKKK1.5KW
Roughness: Ra≤0.2gm
