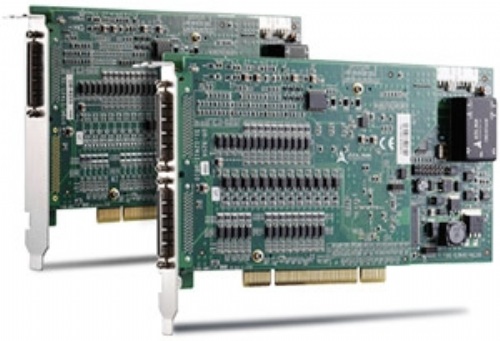

3/6 axis Analog DSP-based Motion Control Cards

Model: PCI-8253/PCI-8256

Category: Machine Tools / Machining Centers / Vertical Machining Centers, Double-Column-Type

Online Inquiry

Characteristics

The PCI-8253/PCI-8256 controllers combine a 250 MHz 32-bit MIPS processor, 12,000 logic element FPGA (Field Programmable Gate Array), I/O buffering circuitry, ADLINK softmotion, and motion control characterization software to control the position/velocity of as many as six ±10 V analog command servo axes. PCI-8253/PCI-8256 leverages ADLINK softmotion technology, 250 MHz DSP and 20 MHz encoder rate to meet faster servo update rate up to 50 μs/axis and control requirement in real application. PCI-8253/ PCI-8256 not only realizes the gantry control with closed-loop and error handling, but also adopts the feed-forward gain to reduce speed profile following error to meet precise velocity and position control.
