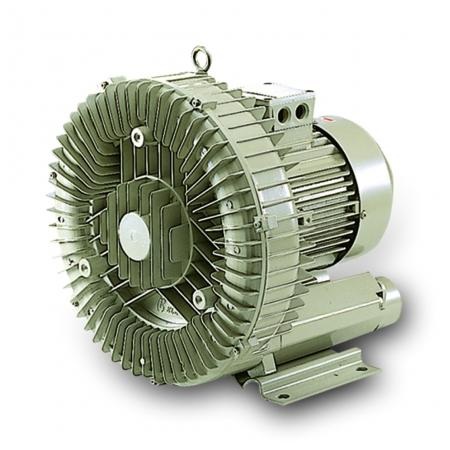

Ring Blower TS TYPE
Model: TS TYPE Ring Blower
Category: Machinery Parts and Components / Machinery Parts and Components / Blowers
Characteristics
When leaf wheel of Ring Blower operate, it will create air flow, which will be enforced by the surrounding air, and eventually the total air body will be pressured and moved to the air outlet of the Ring Blower and then goes out. The Ring Blower features high Reliability. The blower has unique tolerance in high pressure. When circumstance suddenly changes, Ring Blower can still run safely and smoothly. Because of its simple design, it needs almost no maintenance. With fine-cooling outer bearing, the blower also has the following strong point¡G (1)High pressure. (2)The bearing operates with low temperature. (3)The lubrication gives extra durability in use. (4)Easy maintenance.
Specification:
-Applications of the Pressure Conveyance
-Pressures Applied¡G500 ~ 3500 mmH2O¡A0.6 ~ 28 kgf/cm²¡A0.18 ~ 15 Kw
-The maximent permissible temperature and the gas temperature at the inlet is 40 ¢J
Feature:
-Low noise and vibration¡GDynamic balancing minimizes vibration.
-Dust-proofed shaft seal¡GProtects bearings from contaminated air stream and possible foreign particle damage.
-High reliability¡GDirectly connected motor shaft-impeller provides reliable, long term performance. No gears, belts, motor brushes or sliding blades to require periodic maintenance.
-Space-efficient design¡GUnique design results in substantial airflows at moderate pressures in minimum space and weight.
-Versatility¡GEasily throttled and changd from pressure to suction operation. May be mounted in a variety of fashiond.
-Stable airflow¡GCentrifugal compressor design delivers smooth, stable airflow with no pulsations.
-High-pressure airflow¡GProduces continuous high-pressure airflow. The Ring Blower is ideally suited to many industrial application.
-No grease, no pollution¡GThe leafwheel, when in operation,, is isolated from other parts of the machine, no need lubrication, so this means no cause of pollution at all.
-Easy installation¡GThe well-equipped blower can be easily installed at any place, any time, for air-compressing or air-vacuuming¡Fcan be set vertically or horizontally.
Specifications
Type- TS TYPE
Type | Phase | Freq. Hz | Power Kw | Voltage V | Current A | Pressure (max) mmAq | Vacuum (max) mmAq | Air Flow (max) m³/min | In/Out Let | Noise Level dB | Weight Kg |
TS-018S | 1 | 50/60 | 0.18 | 110/220 | 1.5 | 700/900 | 600/700 | 0.6 | PF 1" | 60/65 | 9.5 |
TS-037S | 1 | 50/60 | 0.37 | 110/220 | 2.5 | 1000/1200 | 900/1000 | 1.3 | PF 1 1/4" | 65/68 | 13 |
TS-075S | 1 | 50/60 | 0.74 | 110/220 | 5 | 1600/1500 | 1300/1400 | 2/2.5 | PF 1 1/2" | 67/72 | 17 |
TS-150S | 1 | 50/60 | 1.5 | 110/220 | 9 | 1800/1500 | 1700/1400 | 3.2/4.5 | PF 2" | 70/75 | 28 |
TS-018 | 3 | 50/60 | 0.18 | 220/380 | 0.9/1.1 | 700/900 | 600/700 | 0.6 | PF 1" | 60/65 | 9.5 |
TS-037 | 3 | 50/60 | 0.37 | 220/380 | 1.3/1.9 | 1000/1200 | 900/1000 | 1.3 | PF 1 1/4" | 65/68 | 13 |
TS-075 | 3 | 50/60 | 0.75 | 220/380 | 1.8/3 | 1600/1500 | 1300/1400 | 2/2.5 | PF 1 1/2" | 67/72 | 17 |
TS-150 | 3 | 50/60 | 1.5 | 220/380 | 3.5/5.5 | 1800/1500 | 1700/1400 | 3.2/4.5 | PF 2" | 70/75 | 26 |
TS-220 | 3 | 50/60 | 2.2 | 220/380 | 5/8 | 2000/1500 | 2000/1500 | 5/6 | PF 2" | 70/78 | 30 |
TS-370 | 3 | 50/60 | 3.7 | 220/380 | 7.5/13 | 2400/2100 | 2200/2200 | 7/7.5 | PF 2" | 77/80 | 45 |
TS-550 | 3 | 50/60 | 5.5 | 220/380 | 11.5/19 | 1800/1500 | 1800/1500 | 10/12 | PF 2 1/2" | 80/85 | 78 |
TS-750 | 3 | 50/60 | 7.5 | 220/380 | 15.5/26 | 2300/1900 | 2100/1900 | 10/12 | PF 2 1/2" | 80/85 | 85 |
TS-1100 | 3 | 50/60 | 11 | 220/380 | 21/35 | 1800/1500 | 2000/1500 | 19/24 | PF 4" | 90/105 | 175 |
TS-1500 | 3 | 50/60 | 15 | 220/380 | 28/47 | 2400/2000 | 2600/2000 | 19/24 | PF 4" | 90/105 | 182 |
TS-1900 | 3 | 50/60 | 19 | 220/380 | 35/58 | 3000/2500 | 3200/2500 | 19/24 | PF 4" | 90/105 | 190 |
