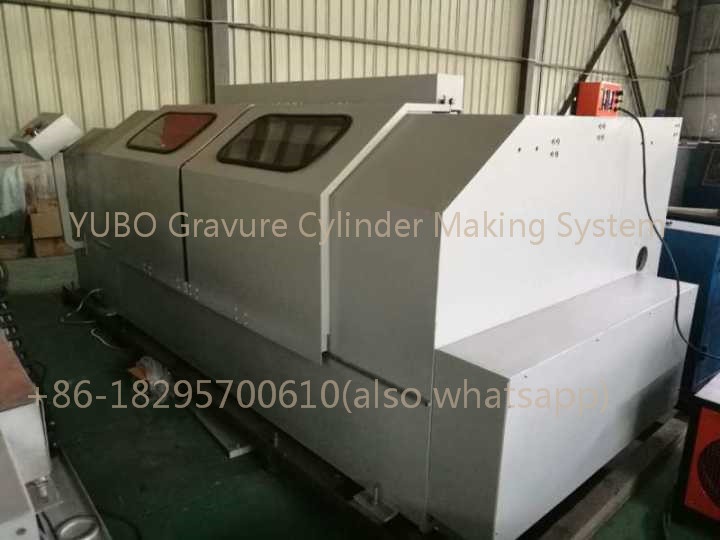

Rotogravure Cylinder copper polishing machine
Model: YUBO
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Rotogravure Printing Press
Characteristics
Features:
@@1. Steel welded framework with high performance, improve the rigidity of equipment and ?reduce vibration.
@@2. Full-closed cover can reduce environmental pollution.
@@3. Full-closed rail can reduce external pollution, to prevent dust entering rail, affecting rail precision.
@@4. Rail and other key operate parts can filling oil and lubrication, which can improve service life. Scientific design, strong adsorption of dust, reducing plant pollution.
Specifications
Product name:Copper polishing machine/Buffing machine
Used for gravure cylinder polishing process.
Suit for both Hollow and Shafted cylinder at different specification as customers'request.
Technical Details of copper polishing:
@@@
@@@@@@@@@@@
@@ Copper polishing machine is our practical models based on advanced technique. The whole machine can run smoothly, high efficiently and environment protection. Cylinder drive adopts 3kw stepless speed reducer,which can adjust speed during80-400rpm/min.
Features:
@@1. Steel welded framework with high performance, improve the rigidity of equipment and ?reduce vibration.
@@2. Full-closed cover can reduce environmental pollution.
@@3. Full-closed rail can reduce external pollution, to prevent dust entering rail, affecting rail precision.
@@4. Rail and other key operate parts can filling oil and lubrication, which can improve service life. Scientific design, strong adsorption of dust, reducing plant pollution.
Technical Parameters
Cylinder length | 300-1300mm |
Cylinder diameter | 90-400mm |
Cylinder rotation speed | 80-400rpm |
Buffing wheel rotation speed | 2900rpm |
Buffing wheel moving speed | 500-2000mm/min |
Dimension | 3900mm x 1650mm x 1400mm |
Weight | Approx.2000kg |
We could provide technical engineer to your place for install machine and give technical support for you.If you need or no need,pls let me know in your enquiry email.Thank you.
