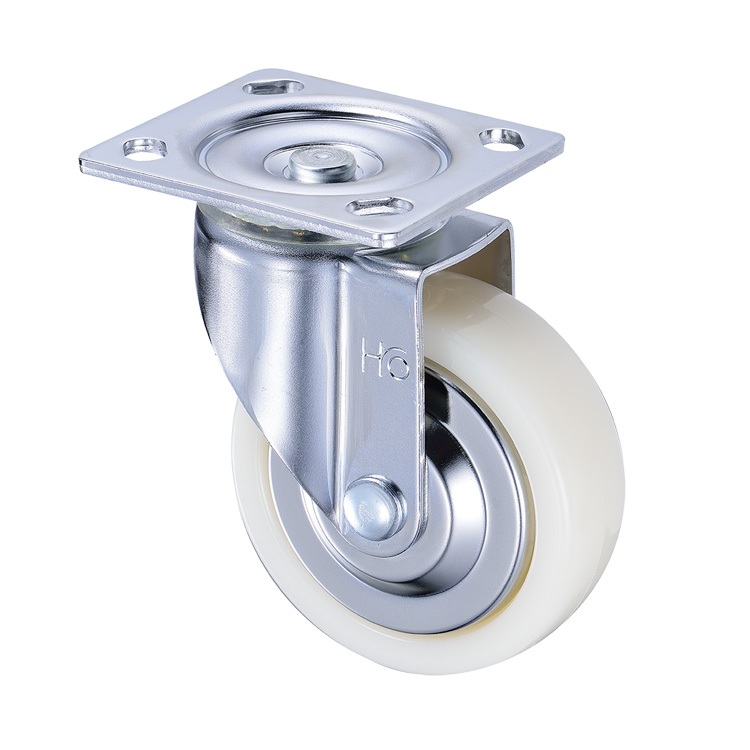

5 inch Chrome Plated Nylon Caster
Model: HO515SW-NLP
Category: Machinery Parts and Components / Machinery Parts and Components / Casters
Characteristics
Wheel: High grade Nylon wheel which is high toughness, wear resistance and easy to push.
Bearing: #6202 double ball bearings to enhance the rotation.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Chrome plated.
Steel wheel covers to prevent the dust, water and other materials.
Specifications
HO515SW-NLP | |
---|---|
Type | Swivel Caster |
Wheel Type | Nylon |
Wheel Diameter(G) x Width | 5x1½ inch (125x38 mm) |
Overall Height(H) | 165 mm |
Load Capacity | 300 kg |
Bolt Hole Center(AxB) | 70x85 mm |
Plate Size(DxE) | 105x115 mm |
Bolt Hole(P) | Φ12x20 |
Wheel Bearing | #6202 Double Ball Bearings |
Fork Structure | Pressed SteelFChrome Plated |
Eccentricity(F) | 42 mm |
Weight | 1.83 kg |
Others | Steel Wheel Cover |
