Flanged End Duplex Strainer (GASVS20)
Model: GASVS20
Category: Machinery Parts and Components / Piping Systems (Pipes, Valves, Fittings) / Stainless Steel Pipes & Tubes
Characteristics

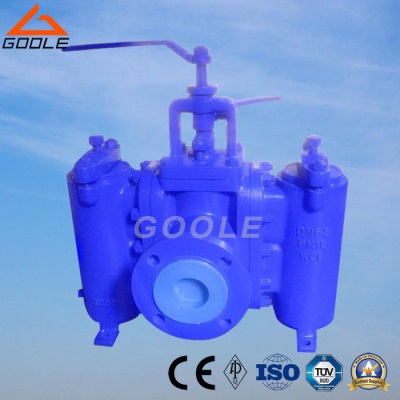

Flanged End Duplex Strainer (GASVS20)
Specifications
Characteristics.
.
It's convenient to clear the impurity when the pipeline is moving
The filtration net has both right and left sides. You can transform the screen at will.
It's convenient to clear the dirt on one side of the filtration net.
Full filter area has been designed in it.
Performance Parameters.
|
Strainer Type |
SVS20-10K, 20K |
|
|
Applicable Fluid |
Water, Oil, Steam |
|
|
Applicable Inlet Pressure |
Max P. 20kgf/cm2 |
|
|
Applicable Temperature |
220ºC-300ºC |
|
|
Connection Mode |
RF Flanged |
|
|
Hydrostatic Test |
30kgf/cm2 -3 |
|
|
Strainer Material |
Body, Cover |
Cast Steel |
|
Screen |
Stainless Steel (304) |
|
|
Cock |
Carbon Steel |
|
|
Gasket |
Asbestos Sheet |
|
Dimension drawing
 |
SVS20-10K, 20K 25A-200A External Dimensions (mm)
|
Size |
L |
H |
H1 |
L1 |
|
25A |
250 |
145 |
350 |
200 |
|
32A |
270 |
210 |
440 |
220 |
|
40A |
270 |
210 |
450 |
220 |
|
50A |
300 |
220 |
495 |
260 |
|
65A |
320 |
230 |
520 |
325 |
|
80A |
320 |
230 |
230 |
380 |
|
100A |
400 |
345 |
690 |
450 |
|
125A |
500 |
380 |
925 |
540 |
|
150A |
560 |
505 |
970 |
650 |
|
200A |
580 |
525 |
995 |
750 |
