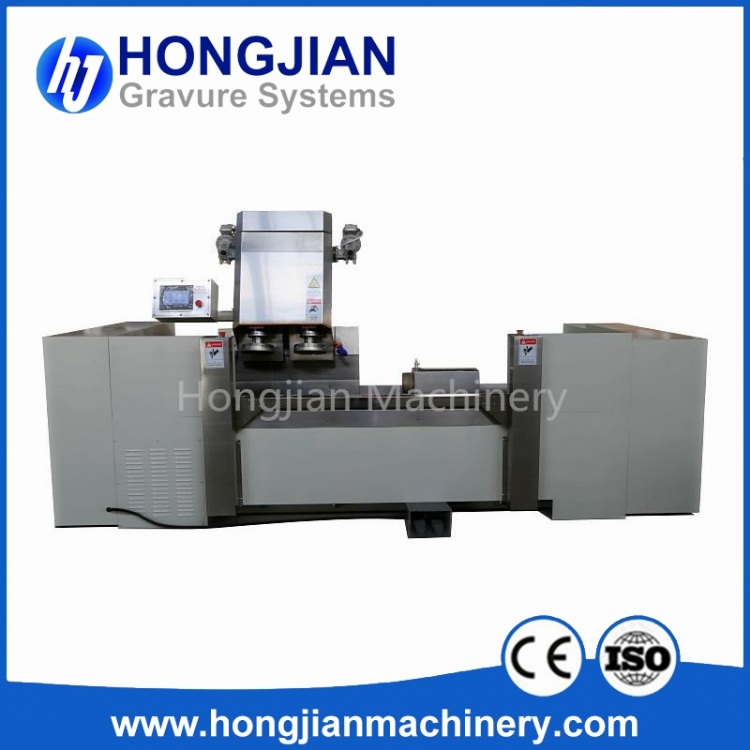

Copper Grinding Machine for Rotogravure Cylinder Grinding Stone Grinding Wheel Grinder

Enlarge

Copper Grinding Machine for Rotogravure Cylinder Grinding Stone Grinding Wheel Grinder

Model: HJ-YMJ

Category: Machine Tools / Grinding Machines / Surface Grinding Machines

Online Inquiry

Characteristics

1. The grinding stone has good rotation and tenacity.
2. The grinding head has flexible lifting and reliable movement.
3. The grinding head has reliable guiding, stable operation, good resilience, which is ensured by the professional spring machine.
4. The good multiple-pulleys are provided by reliable factories.
5. The axle of head box uses the traditional structure and the rotating parts uses the imported precise double bearings, ensuring the precise rotation and superior performance.
6. The dead centre is the anti-sliding one, preventing rollers when grinding.
7. The live centre is highly precise one, ensuring rotating precision.
8. The ABB linear rail is precise, ensuring the flexible and reliable movement of grinding head.
9. The T screw is accurate, ensuring the reliable output of power.
10. Advanced PLC and transducer ensure the advantages such as high automation, reliable performance and long service life.

Specifications

HJ-YMJ Copper Grinding Machine,is used to grind the rotogravure cylinder, is a self-developed automatic numerical control model. The grinding performance is stable and efficient. It adopts goog quality electronic parts, fully ensuring the quality and long service life of the machine.

FEATURES:
1. The grinding stone has good rotation and tenacity.
2. The grinding head has flexible lifting and reliable movement.
3. The grinding head has reliable guiding, stable operation, good resilience, which is ensured by the professional spring machine.
4. The good multiple-pulleys are provided by reliable factories.
5．The axle of head box uses the traditional structure and the rotating parts uses the imported precise double bearings, ensuring the precise rotation and superior performance.

6. The dead centre is the anti-sliding one, preventing rollers when grinding.
7. The live centre is highly precise one, ensuring rotating precision.

8. The ABB linear rail is precise, ensuring the flexible and reliable movement of grinding head.
9. The T screw is accurate, ensuring the reliable output of power.
10．Advanced PLC and transducer ensure the advantages such as high automation, reliable performance and long service life.

MODEL	Cylinder Length Range (mm)	Cylinder Diameter Range (mm)
Double Head Automatic	300-1400mm	90-400mm
Double Head Manual	300-1700mm	90-450mm
Single Head Automatic	300-3000mm	90-500mm
Single Head Manual	300-3800mm	90-600mm

Welcome your enquiry.
