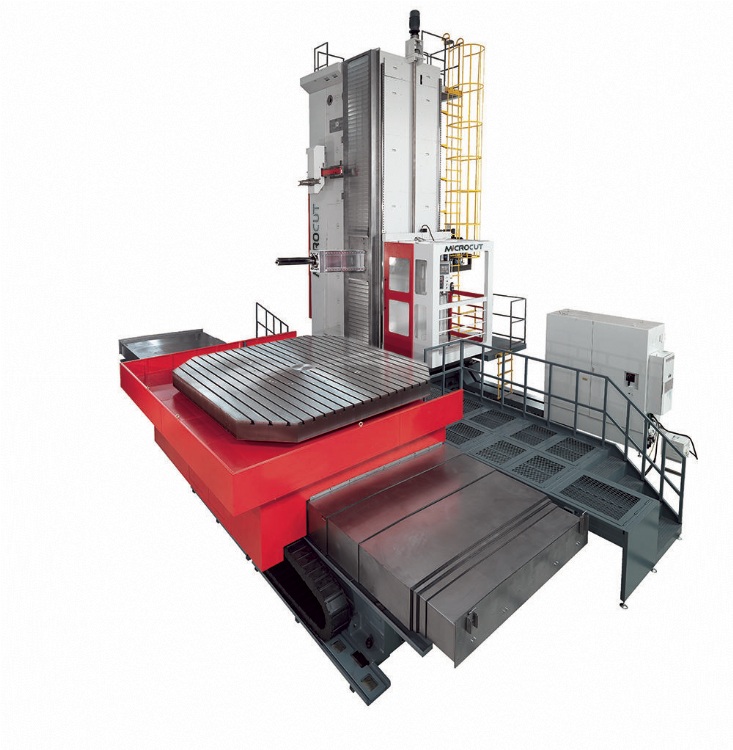

Horizontal Boring and Milling Center
Model: HBM-140RT
Category: Machine Tools / Boring Machines / CNC Boring Machines
Characteristics
With an extension of the working capacity, the HBM-140RT travelling column RAM type boring and milling center offers X/Y/Z axis travels up to 6500/4500/2000mm. Table size up to 3500x3500mm with a loading capacity of 40000kgs. It offers dia. 140mm spindle with a ram stroke of 800mm and a quill travel of 700mm. Advanced ram and spindle straightness control technology ensures ultra-precise machining while ram and W-axis are fully extended.
Specifications
ITEM | UNIT | HBM-140RT |
X axis table cross travel | mm | 4500 (std); 5500 / 6500 (opt) |
Y axis headstock vertical | mm | 3200(std) / 4500(opt) |
Z axis column long travel | mm | 2000 |
Quill diameter | mm | 140 |
RAM (W2 axis) cross travel | mm | 800 |
Quill (W1 axis) travel | mm | 700 |
