polishing burnishing lapping making cutting semi automatic lathe sichuan bevel gear cnc machine china factory

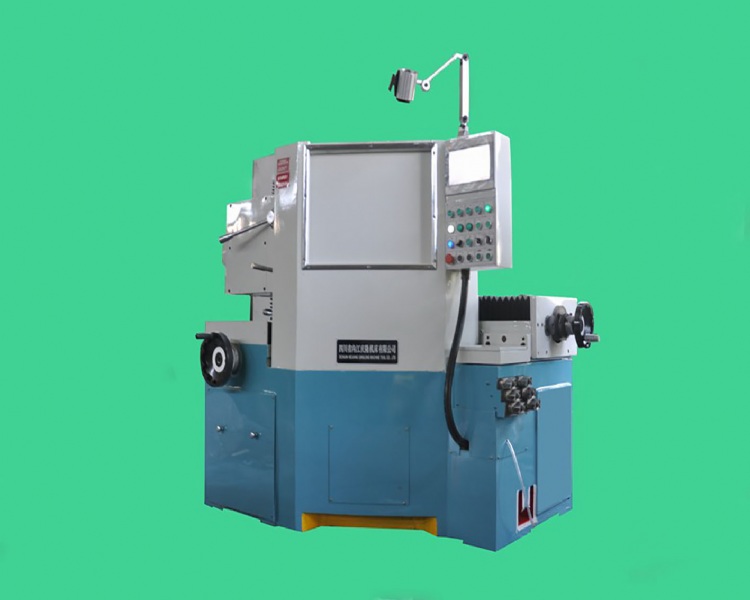

Model: YB2550

Category: Machine Tools / Gear Cutting Machines / Gear Cutting Machines



Online Inquiry





Characteristics



 polishing burnishing lapping making cutting semi-automatic lathe Sichuan bevel gear CNC machine china factory
  The bevel gear burnishing process machine adopts the principle of "swing small wheel section cone" lapping tooth. After the lapping of the gear pair, the surface roughness of the tooth profile can be improved, and the minor deformation of the tooth surface after heat treatment can be trimmed to improve tooth surface contact. Accuracy, reduce gear noise.
  The Sichuan machine features are as follows:
1. The active box moving guide adopts the rolling guide pair, double nut screw drive and hydraulic locking structure, which improves the stability of automatic backlash mechanism work;
2. The frequency of the active spindle and the oscillating angle are all controlled by the frequency converter, and the electrical appliance adopts the PLC control.
3, swing angle over-range detection signal, reset by the reset switch button, and an over-travel alarm system device
4,   semi-automatic lathe machine is mainly for gear cutting, angle contact switch with a non-contact proximity switch
5, independent external hydraulic station system
6, after the grinding teeth, with automatic tooth drying device
7. The lubrication of the main and sub-spindle rolling bearings is automatic intermittent quantitative lubrication of the volumetric electric oil machine, and there is an oil shortage alarm device.
8,   CNC machine uses aviation plug wiring device
