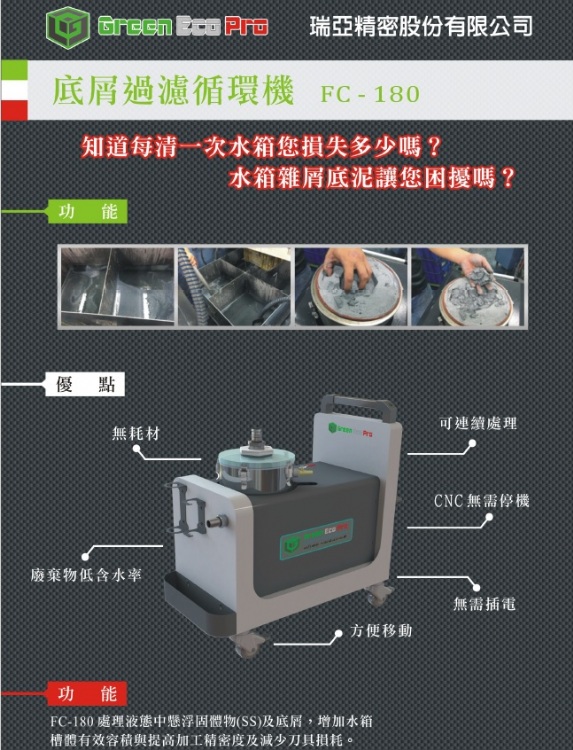

Chip Vacuum Removal System
Model: Chip Vacuum Removal System FC Series
Category: Machinery Parts and Components / Machinery Parts and Components / Chip Conveyors
Characteristics
Promote Volume of Water Tank
Empty space promotes 40% efficiently
Reduce manual work
Lower 15% of the cost, Increase Value of output
No consumable
Cost down & Use more earn more
CNC Machine No need to Stop
Promote productivity 50%, get High efficacy target
Specifications
Model | FC180 | FC180 Plus | FC380 | Unit |
---|---|---|---|---|
Dimension | 760*380*730 | 760*380*730 | 980*430*730 | mm |
Net Weight | 56 | 63 | 71 | kg |
Filter Tank capacity | 7 | 17 | 17 | L |
Air pressure | 5 | 5 | 5 | bar |
Maximum Air consumption | 1200 | 1200 | 2400 | l/min |
Maximum Negative pressure | 35 | 35 | 55 | kg/m3 |
Fluid volume | 180 | 180 | 380 | l/min |
Filter Precision | 380 | μm | ||
Suggest air supply caliber | 3 | 3/8 | 1/2 | inch |
*If purchase the filter basket, 180μm or 380μm of filter basket can be optional.
