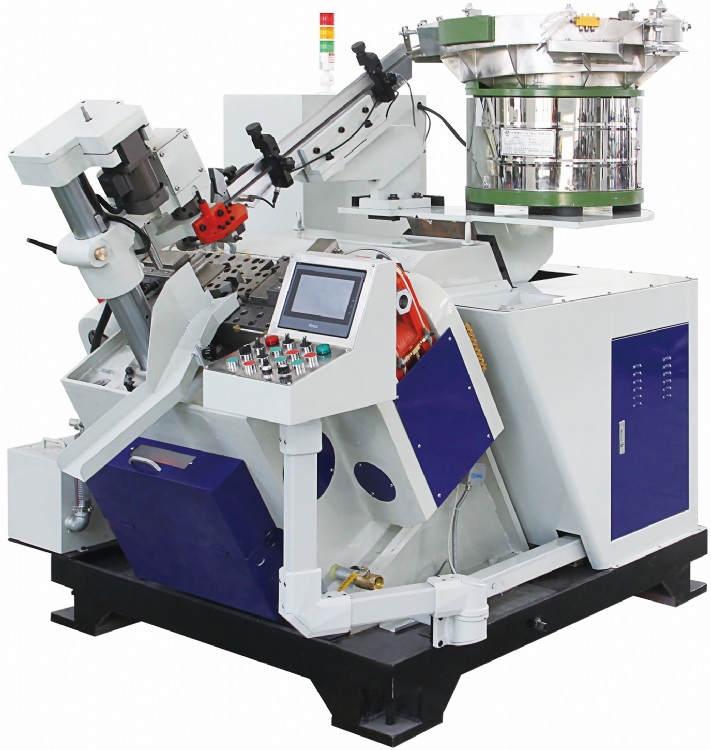

Intelligent Self Drilling Screw Point Forming Machine
Model: AE-6200D
Category: Automatic/Industrial Machines & Equipments / Bolt, Screw & Nut Making Machines / Bolt, Screw & Nut Making Machines
Characteristics
Manufacturing steps to make self drilling screw with washer:
Finished wire ¡V Heading ¡V Self Drilling Screw Point Forming ¡V Thread Rolling ¡V Heat treatment ¡V Surface treatment ¡V Screw Washer Assembly ¡V Packing
We Airon Machinery supply full line equipment & dies for self drilling screw manufacturing, including Heading Machine, Thread Rolling Machine, Self Drilling Screw Point Forming Machine, Screw Washer Assembly Machine, Heat treatment equipment etc.
Specifications
High Speed & High Precision
Self Drilling Screw Point Forming Machine
To form point of Self Drilling Screws
Model: AE-6200D
Specification:
|
Capacity |
OD Φ: 3.5-6.3mm(6#-14#), Length: 10-200mm. |
|
Speed |
Single punch 100-500PCS/min¡A Double punch 40-150PCS/min. |
|
Power |
Inverter 11KW (15HP) , Motor 7.5KW (10HP. 6P) . |
|
Control system |
PLC(Program Logical Control) |
|
Detection system |
Touch Screen HMI Error Display Automatic on-line detection Accurate error alarm |
|
Transmission |
INDEX |
|
Lubrication system |
Double oil pump |
|
Dimension (L*W*H) |
L1950*W1550*H1650mm |
|
Packing size |
L2100*W1600*H1800mm |
|
Machine Weight |
N.W. 2800KG/G.W.2900KG |
