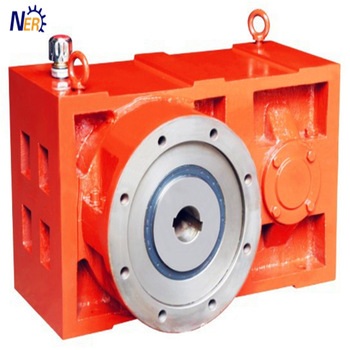

Helical speed reducer ZLYJ for plastic extruder recycle machine
Model: ZLYJ series
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / High-Frequency Plastic Welding Machines
Characteristics
1. The input rotation of prime mover shall be ≤1500rpm
2. The peripheral speed of gear drive shall be ≤20m/s
3. The working ambient temperature shall be within -40~45°C.Preheat the lubrication oil to above 0°C when the ambient temperature is below 0°C. Rotation is available both forwards and backwards. However, the high speed shaft of some types of reducers has a single way oil pump directing as defaulted to the output shaft which rotates clockwise.
Specifications
ZLYJ series plastic extruding gear reducer are high precision hardening tooth flank transmission part with thrust bearing housing. They are designed for plastic screw-rod extruder according to ZBJ19009-88. The gears and axes are made of high strength alloy steel. The gears are manufactured by way of carburizing hardening, precision grinding. Its precision is up to Grade 6(GB10095-88). Hardness of tooth flank is HRC54-62. Thrust bearing is in front of output hollow shaft to accommodate screw-rod back pressure forces. Bearings, oil seals and some other standard units are quality products and they can also be imported goods to meet customers' requirements. This kind of speed reducer has the characteristic of small volume, high load capacity, stable transmission, low noise, high efficiency. They properties reach levels of foreign products of the same kind and it can take place of them.
