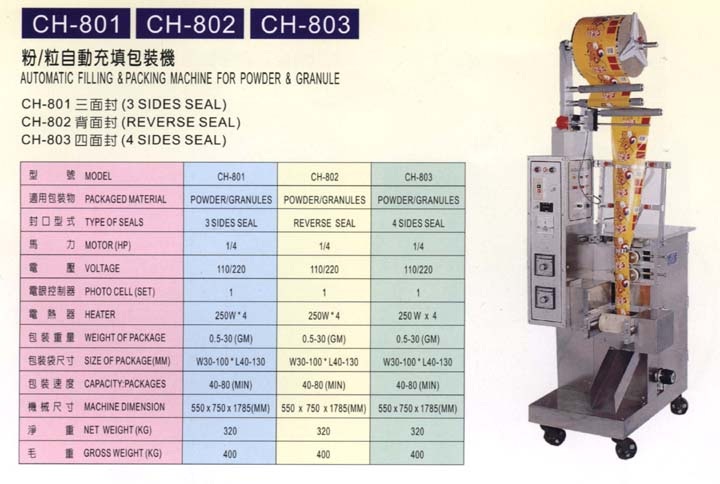

AUTOMATIC FILLING & PACKING MACHINE FOR POWDER & GRANULE
Model: CM-801 / CM-802 / CM-803
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Vertical Packaging Machine
Characteristics
Automatic electric eye tracking control, high precision in bag making and cutting.
This machine can be used for three-side sealing, four-side sealing, and back sealing, according to the specified packaging type.
The main body and the package are in contact with the main part, which is made of stainless steel and meets safety and hygiene standards.
Automatic counting device.
Applicable packaging : powder, granular items
Such as: coffee, powder, pollen, peanuts, pepper, salt, sugar, etc.
Specifications
| 型號 | CM-801 | CM-802 | CM-803 |
| 適用包裝物 PACKAGED MATERIAL |
POWDER/GRANULES | POWDER/GRANULES | POWDER/GRANULES |
| 封口形式 TYPE OF SEALS |
3SIDES SEAL | REVERSE SEAL | 4SIDES SEAL |
| 馬力 MOTOR(HP) |
1/4 | 1/4 | 1/4 |
| 電壓 VOLTAGE |
110/220 | 110/220 | 110/220 |
| 電眼控制器 PHOTO CELL(SET) |
1 | 1 | 1 |
| 電熱器 HEATER |
250w*4 | 250w*4 | 250w*4 |
| 包裝重量 WEIGHT OF PACKAGE |
0.5-30(GM) | 0.5-30(GM) | 0.5-30(GM) |
| 包裝袋尺寸 SIZE OF PACKAGE(MM) |
W30-100*L40-130 | W30-100*L40-130 | W30-100*L40-130 |
| 包裝速度 CAPACITY:PACKAGES |
40-80(MIN) | 40-80(MIN) | 40-80(MIN) |
|
機械尺寸MACHINE DIMENSION |
550x750x1785(MM) | 550x750x1785(MM) | 550x750x1785(MM) |
| 淨重NET WEIGHT(kg) | 320 | 320 | 320 |
