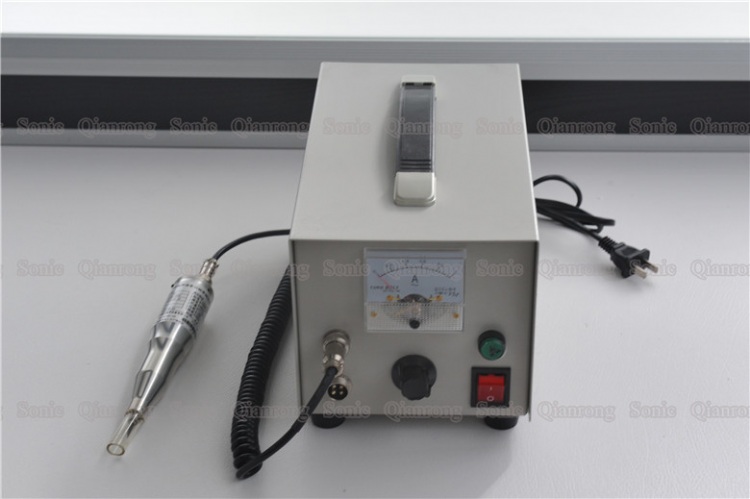

40Khz Ultrasonic Portable Cutting Machine
Model: QR-C40A
Category: Machine Tools / Welding and Cutting Machines / Spot Welders
Characteristics
The basic structure of the ultrasonic cutter is an ultrasonic transducer, a horn, a tool head (knife body), and a driving power source. The ultrasonic drive power source converts the commercial power into a high-frequency high-voltage alternating current and outputs it to the ultrasonic transducer. An ultrasonic transducer is actually equivalent to an energy conversion device that converts input electrical energy into mechanical energy, ie, ultrasonic waves. Its manifestation is that the transducer moves back and forth in the longitudinal direction. The frequency of the telescopic motion is equivalent to the frequency of the high frequency alternating current supplied by the driving power source. The role of the horn is to fix the entire ultrasonic vibration system and to adjust the output amplitude of the transducer. The tool head (knife body) on the one hand amplifies the amplitude and focuses the ultrasound. On the other hand, the ultrasonic wave is output, and the ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by using a similar cutting edge of the cutting blade. Under the action of huge ultrasonic energy, the part softens and melts instantaneously, and the strength is greatly reduced. At this time, as long as a small cutting force is applied, the purpose of cutting can be achieved.
Specifications
Item No | QR-C40A |
Power | 100W |
Generator | Analog generator |
Frequency | 40KHZ |
Voltage | 220V or 110V |
Handle Dimension | Φ32*170 |
Generator Dimension | 155*265*170mm |
Gross weight | 5Kg |
Replacement blade | 25pcs |
