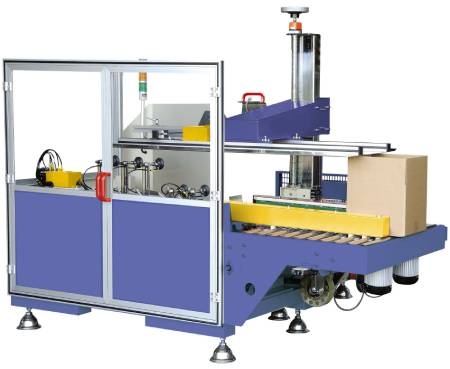

Vertical Type Carton Erector
Model: GQCE6701
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Carton Machine, Carton Loading Machine, Carton Sealing Machine
Characteristics
1. Vertical type carton erector. Manually refill unopened cardboards at any time.
2. Side belt driven.
3. Applicable to common cartons. Used for automatic packaging lines, include carton opening, erecting, folding bottom flaps and tape sealing at a time.
4. PLC controlled. Easy to alter the program.
5. Controlled by touch screen (HMI / MMI).
6. Easy to adjust for different carton sizes by handwheel.
7. Adhesive tape seat can automatically adjust for uneven cartons, which is fast, smooth and durable.
8. Japanese pneumatic components.
9. Safety signal and shortage alarm of cardboard storage.
10. Brush wipe down makes bottom tape sealing smooth.
11. Dual suction cups.
12. Easy to operate.
Specifications
Model | GQCE6701 Vertical Type Carton Erector |
Machine size (mm) | L2310 x W2400 x H1800 |
( Spec. subject to change without prior notice. ) | |
Driven | By side belt |
Tape Width | 2” or 3" |
Feeding direction | L type (Left hand / Right hand) |
Carton size (mm) | L250-500, W170-400, H90-500 |
Tape overlap (mm) | L60±5 |
Working height (mm) | 650 |
Capacity | 8-10 cartons/min (Depend on carton's size and material.) |
Cardboard storage | 90-100 pcs (Depend on carton's thickness.) |
Voltage | 3Φ 220V |
(Depend on customer's request.) |
