Specifications

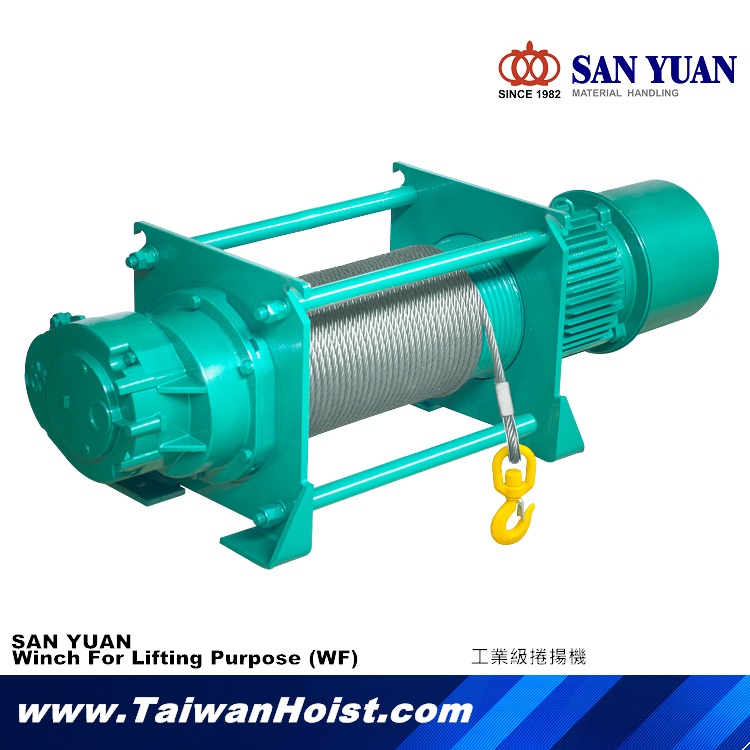

SAN YUAN Winch For Lifting Purpose

• Hoisting motor – available with various voltages and insulation classification. For operator safety, low voltage control is standard.

• AC Hoisting Brake – disc brake having the braking torque >150% rated torque of motor . The brake is holden even if power failure - ensuring the load is always stopped when the control button is released.>

• The safety factor is 5 times or more under the consideration of sheave efficiency. Standard wire is 6xSes(37)+FC for a long service life.>

• Helical gear - Since gear is made of SNCM220 and S45C and is treated with induction hardening, the surface is hard ( 50HR ~ 60HR) and inside is elastic. Gears are smoothly operated for an oil bath lubrication and superior to a wear and abrasion resistance.>

• Fine machining of the drum grooves minimizes wear on the rope, the return sheaves are resistance to wear.
