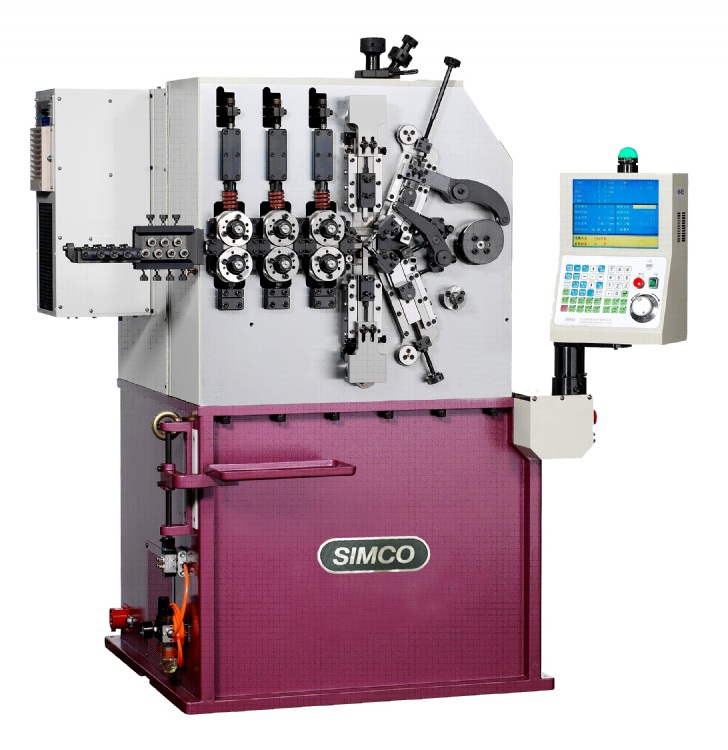

CNC spring coiler
Model: CSC-series (5-axis)
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Spring Coil Winding Machines
Characteristics
1. Five axes with servo motors for feeding, cutting, wedge, pitch, and coiling.
2. Taiwanese computer controller and Japanese servo motors
3. 10.4 inch LCD monitor with USB socket
4. Tools are made by W.C. and feeding rollers are made by H.S.S.
5. Easy five steps of exchange left and right hand coiling
6. Cutting mode has straight cut and swing cut
7. Auto edition function for programming
8. Industrial cooling device
Option:
1. Spring gauge (spring length detector) included probe and sorter
2. Automatic pay off (decoiler) synchronizing with the spring coiler
3. Safety wiring, interlock and cover for CE standard
4. Full set of torsion tooling
5. Spring tray (air slide) for longer spring
Specifications
Model No. |
CSC-508 |
CSC-516 |
CSC-532 |
|
Wire Diameter (mm) |
0.1-0.8 |
0.7-1.8 |
1.4-3.2 |
|
Feed Roller (pair) |
1 |
2 |
3 |
|
Mini. Spring Index |
4 |
|||
Max. Spring O.D. (mm) |
20 |
40 |
50 |
|
Max. Feed length (mm) |
Unlimited |
|||
Max. Production Rate (pcs/min) |
800 |
500 |
200 |
|
Power Supply |
220V, 3Æ (transformer 380/400/415/440V is available) |
|||
Machine Dimension (mm) |
L |
950 |
1250 |
1450 |
W |
730 |
950 |
1120 |
|
H |
1400 |
1560 |
1610 |
|
Machine Weight (kg) |
385 |
690 |
970 |
