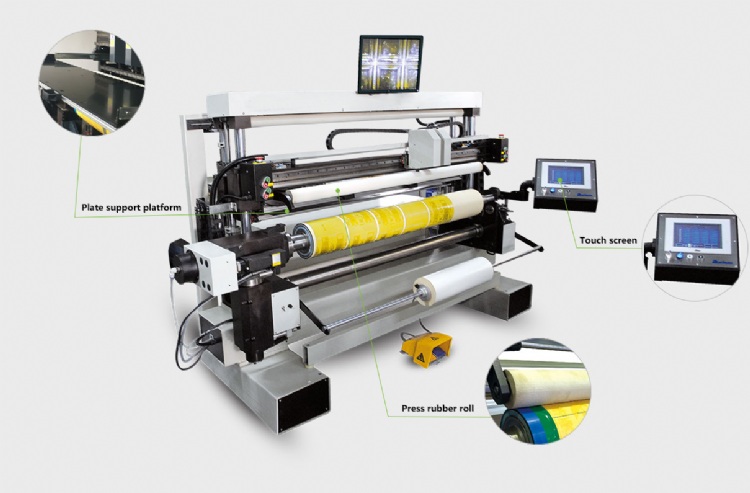

Flexo Plate Mounting Machine
Model: 5S sleeve type (cantilever) press machine
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
Brief description:
It is mainly used for the plate work of the air-up sleeve plate roller. The sleeve plate roller of the plate-fixing machine is mounted on a gas-increasing mandrel connected to the electric head frame, and the electric head frame is provided by a double-foot switch. Control anyway.
The air-up mandrel can be rotated horizontally to a certain angle to facilitate the installation of the air-lifting sleeve plate roller.
On the right side of the platen machine is equipped with a gas rising roller positioning bracket for positioning and adjustment of the plate roller.
System features:
· The structure is stable and the rigidity is good, which ensures the accuracy of the plate.
· Two CCD lens magnifications of 50X (17-inch display).
· Use to improve the work efficiency of the plate and the printing accuracy of the printed matter.
· A power supply with a corresponding voltage can be configured in countries with different voltage standards.
· Two screens and crosshairs are displayed on the left and right sides of a single LCD monitor.
· The web double-sided tape holder adjusts the axial position for easy cutting and use.
· The lens beam is driven vertically up and down by a motor to accommodate the plate work of different diameter plates.
