- 3-pc high performance full bore ball valve, API607 6th Edition / ISO10497 Fire Safe Approved. ISO5211 Direct-Mounted Pad. 2000psi.

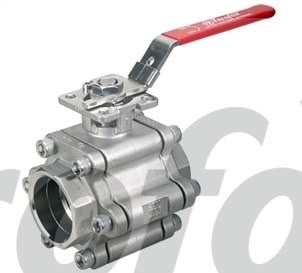

3-pc high performance full bore ball valve, API607 6th Edition / ISO10497 Fire Safe Approved. ISO5211 Direct-Mounted Pad. 2000psi.
Model: EB-321DFS
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Valves
Characteristics
* Blow-out-proof & anti-static device.
* API 607 6th Edition / ISO10497 Fire Safe Certified valves.
* ISO 5211 Direct-Mounted Pad for Acuation.
* Website: http://www.terofox.com/ProduceDetails.aspx?PID=253
Specifications
※ For any other requirements, please send to [email protected] and we will reply to you as soon as possible.
| Valve Design | ASME B16.34 |
| Size | 1/4"~4" |
| Rating |
1/4"~2" - 2000 WOG 2-1/2"~4" - 1000WOG |
| End Connection | BSPT ( BS 21 ) BSP ( BS 2779 ) ISO 228-1 DIN 2999 ISO7-1Rp B1.20.1 NPT B16.11 Socket Weld B16.25 Butt Weld |
| Operation | Lever with locking device |
| Material |
Body-WCB or CF8M Ball-CF8M Stem-SS316 Seat-RTFE |
| Valve Test | API 598 |
