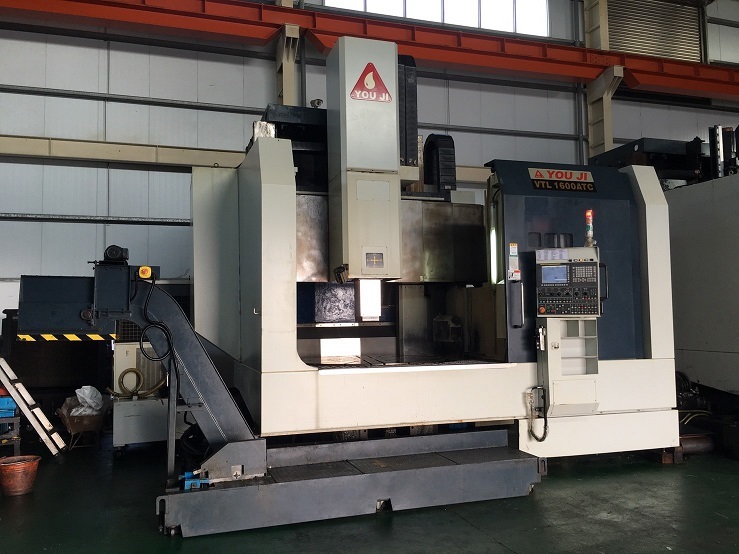

YOU JI CNC VERTICAL TURNING LATHE
Model: VTL-1600
Category: Machine Tools / Used Machines / Used Machines
Characteristics
YOM: 2016
Model: VTL-1600ATC
Controller: FANUC 0i-TF
Table dia.: 1600mm
Max. swing: 2000mm
Max. turning dia.: 1800mm
Max. turning height: 1200mm
X axis travel (left-right): -3593~+1103mm(include ATC travel)
Z axis travel (up-down): 900mm
Vertical travel of cross rail: 800mm
Table speed: 1~250rpm (2 steps)
Spindle motor: α40i (37/45kW)
Two sides restraint spindle
BT50 / 12ATC
X/Z axes Heidenhain linear scales
Tool off set
High pressure pump (20bar)
Air conditioner for electrical cabinet
Hydraulic tank cooler
Spindle oil cooler
Oil skimmer
Chip conveyor
Tool magazine high pressure air blast
O.D. tool holder: 11 pcs
I.D. tool holder: 2 pcs short; 1pc long
