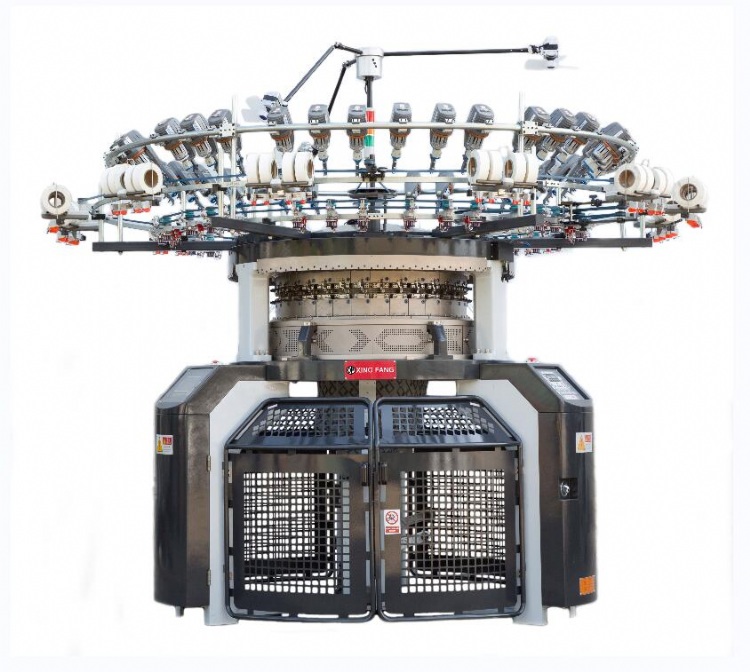

Double Computerized Jacquard Circular Knitting Machine
Model: XDC
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Circular Knitting Machines
Characteristics
The machine uses computerized selectors to select needles in the cylinder with the 2-way or 3-way technique of knit, tuck and miss, which can produce fabric with different patterns without limitation. Any intricate pattern of fabric can be converted via computerized pattern preparation system into the special control command which instructs selectors to make jacquard fabric.
The control system is designed to install the electronic computer processing system and computerized selectors together in the machine with the most advanced micro-processing technology. The precise encoder can accurately calculate the needle position andzero-point calibration to ensure the stability of needle selection system. The machine adopts touch LCD display screens to simply the operation, save space and keep itself clean and tidy.
No specific softwares are needed for graphics but common ones. Any cloth cover or pattern can be scanned into or programmed and input into computers, edited, converted into needle selecting programs by WAC Designer, put into USB and run on the machine.
Specifications
Model |
Cylinder Diameter |
Gauge | Feeder Number |
Double Computerized Jacquard Circular Knitting Machine |
17"-42" |
7G-36G | 54F-84F |
