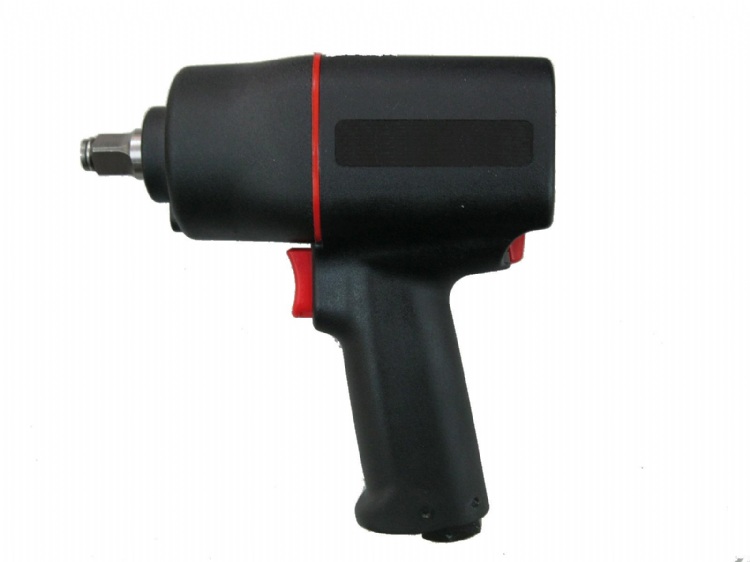

1/2" Air impact wrench
Model: HW-50W
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
1.Vibration is very small :
Inside is integrally formed of steel to avoid vibration. The housing is composite. It will not
affect the tool functions if there is a little crack. Light weight and low vibration protect the
operator's arm.
2. Very light :
Weight is only 1.9 kgs./4.19 lbs. It reduce operator's fatigue and reduce delivering
charge.
3. Forward and reverse : Patented one hand operation.
4. Cylinder is durable :
It use anti-rust wear-resistant steel plate.
5. Fast cooling down :
It can be fast reducing temperature due to the exhaust runners use automatic cooling of
stereoscopic design.
Specifications
Square drive
|
1/2"
|
Mechanism
|
Twin hammer
|
Bolt capacity
|
M19
|
Whole length
|
190 mm
|
Avg. air consumption
|
0.15 m³/min
|
Air inlet
|
1/4"
|
Air pressure
|
90 psi
|
Hose size (I.D.)
|
3/8"
|
Working torque
|
500 ft/lbs./ 678 Nm
|
Max reverse torque
|
800 ft/lbs./ 1085 Nm
|
Speed
|
6800 rpm
|
Net weight
|
1.9 kgs./ 4.19 lbs.
|
