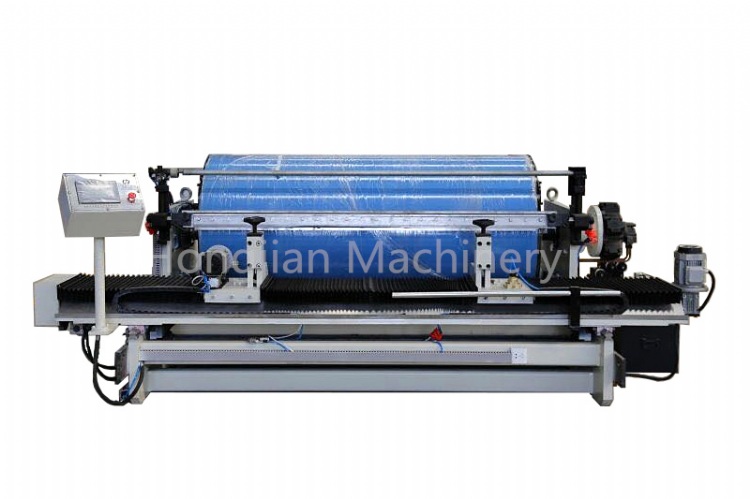

Proofing Machine Gravure Cylinder Proofing Printing Cylinder Proofer Proof Press
Model: Gravure cylinder making machinery
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Rotogravure Printing Press
Characteristics
DISTINCTIVE FEATURES:
Precise registor control
Programmable logic control (PLC)
Pneumatic control for doctor blade in and out
Hydraulic control with high pressure system
Fully safety interlocking system to avoid accident.
High precise registration camera & monitor.
Specifications
HJ-DYJ proofing machine is to test and proof rotogravure cylinders after engraving, to check its correct pattern and get customers approval. To proof gravure cylinders used both shafted and hollow cylinders.
High-end proofing machine is a new generation automatic proofing machine upgraded from the old style, which combines the past experience of designer and intelligent CNC technology development. The machine is operated by an industrial touch-screen computer. It adopts imported linear guide, imported bearing ABB dynamo, and SMC pneumatic element. Particularly suitable for plastic, paper, leather, PVC, plastic and plastic packaging printing roller proofing, suitable for gravure business, decoration materials production enterprises, gravure packaging printing enterprises, wallpaper production enterprises, printing ink production enterprises.
Main Technical Parameters
Press roller diameter: Φ500
Rubber coating width: 1400mm
Rubber coating thickness: 3mm
Max. printing width: 1400mm
Cylinder length: 420-1400mm
Cylinder diameter: 115-350mm
Printing speed: 7-40m/min
Printing press: Pneumatic cylinder pressure 3-4 kg/cm2
Scraper adjustment: Manual adjustment
Angle adjustment: Manual adjustment
Drive power: 3kw, 120-1200 rpm
Power source: 3-phase AC 380v, 50Hz
Pneumatic source: Pressed air 7kg/cm2, flux 0.3m3
Customer Responsibility: Air compressor
Dimension ( L x W x H ): 3180 x 1500 x 1200 mm
Weight: 4200 kg
Power Supply: 4 kw
The parameters can be adjusted as customer requires.
