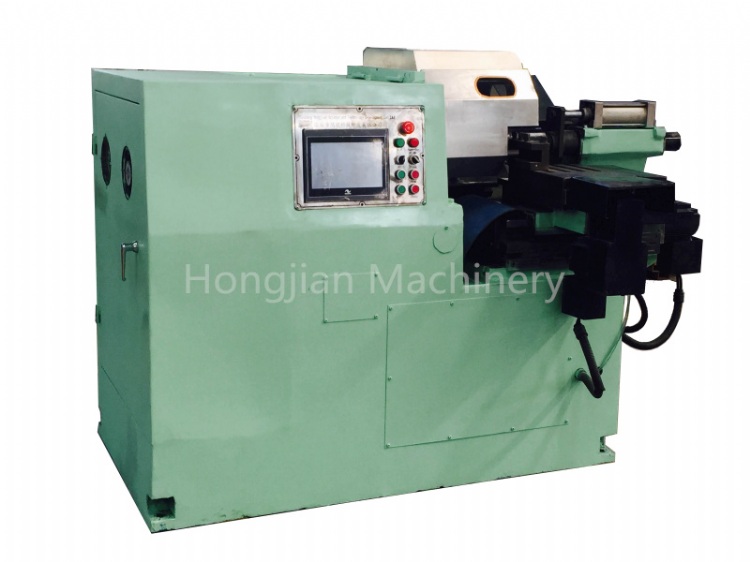

Automatic CNC Lathe Machine for Gravure Cylinder Flange Making Equipment
Model: Automatic
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Rotogravure Printing Press
Characteristics
1. The spindle drive system adopts frequency control of motor speed, it automatically adjusts spindle speed within the scope of 120-700 r/min according to the diameter of work piece size
2. The tailstock adopts simple and reliable air clamper device
3. It is high efficiency. One time clamping can finish the processing of the inner hole and outer circle of the work piece.
4. Simple operations and pleasant interface
Specifications
HJ-CDJ Core-Double Tool Post CNC Lathe Machine is a new generation of CNC lathe for gravure cylinder making. The machine uses four axis servo control system, the integration of casting lathe bed with rectangular guide way, guarantying the enough strength, stiffness and good shock resistance. The machine structure is compact.
CAPABILITY:
Workpiece OD: ¢90-320mm
Workpiere ID: ¢50-100mm
Workpiece bore pitch: 0-90°
Workpiece thickness: 60mm
The Knife largest trip
The Outside Knife largest trip of horizontal: 160mm
The Outside Knife largest trip of vertical: 220mm
The Inside Knife largest trip of horizontal: 220mm
The Inside Knife largest trip of vertical: 220mm
The Other parameters of machine
The top taper of hole ahead the main axis: Morse 6
Spindle speed range: 120—700r/min
No level machinery velocity modulation
Tailstock:
The Diameter of the Set tube for the top taper: 70 mm
The largest trip of the Set tube for the top taper: 125mm
The top taper: Morse 5
Transmission set
Main Motor rated power: 12.5KW
Main Motor speed: 960 r/min
The transmission ratio Rope Wheel: 2.1: 1
Weight: 2800kg
Dimension L*W*H: 2000*1800*1600 mm
