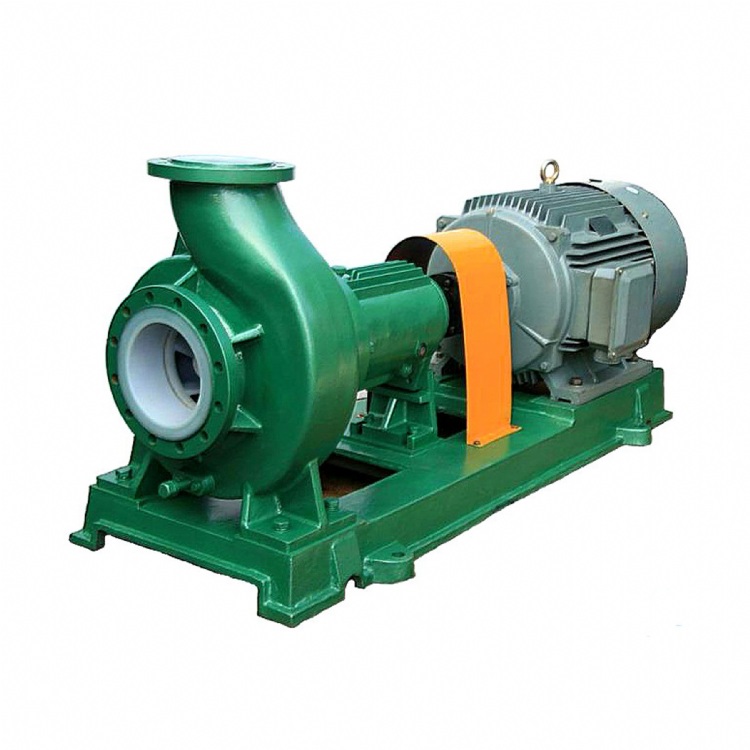

Jushi single stage single suction pump PVDF lined pump centrifugal chemical pump
Model: IHF
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pumps, Fans (Blowers), Compressors, and Vacuum Pumps
Characteristics
Product introduction:
1. IHF single stage single suction pump PVDF lined pump centrifugal chemical pump is working for highly corrosive mediums between -85XC~120XC (-121XF~248XF), such as arbitrary concentration of vitriol, muriatic acid, hydrofluoric acid, nitric acid, aqua regia, strong base, strong oxidant, organic solvent, reducing agent, etc.
2. The casing is metal lined with PVDF. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic.
3. The centrifugal pump is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain and long service life.
4. The chemical pump is widely used in chemistry, pharmacy, petroleum, metallurgy, smelting, electricity, electroplating, dye, farm chemical, papermaking, food, spinning or other industries.
Specifications
Product introduction:
1. IHF single stage single suction pump PVDF lined pump centrifugal chemical pump is working for highly corrosive mediums between -85°C~120°C (-121°F~248°F), such as arbitrary concentration of vitriol, muriatic acid, hydrofluoric acid, nitric acid, aqua regia, strong base, strong oxidant, organic solvent, reducing agent, etc.
2. The casing is metal lined with PVDF. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic.
3. The centrifugal pump is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain and long service life.
4. The chemical pump is widely used in chemistry, pharmacy, petroleum, metallurgy, smelting, electricity, electroplating, dye, farm chemical, papermaking, food, spinning or other industries.
Product details:
Working Principle: |
Centrifugal |
Main applications: |
Chemical |
Driver: |
Electric motor |
Power Specs: |
110/220V 1phase, 220/380/415V 3phase; 50hz/60hz |
Max.permissible fluid temperature: |
120°C(248°F) |
Type of connection: |
Flange |
Installation position: |
Horizontal |
Casing parts material: |
Metal lined with PVDF |
Shaft seal type: |
Mechanical seal |
Free passage: |
1 mm |
Maximum drive rating: |
45KW(60HP) |
Maximum caliber: |
100mm(4inch) |
Maximum discharge-side pressure: |
0.8MPa(8bar) |
Maximum head: |
80m(262.4ft) |
Flow rate range: |
2.5-100m3/h(11-440US.GPM) |
Performance data:
Model |
Speed |
Capacity |
Head |
Eff. |
Power(KW) |
NPSH(r) |
||
(r/min) |
(m3/h) |
(L/s) |
(m) |
(%) |
Shaft |
Motor |
(m) |
|
IHF32-25-125 |
2900 |
5 |
1.39 |
20 |
44 |
0.62 |
1.5 |
2.3 |
1450 |
2.5 |
0.69 |
5 |
40 |
0.085 |
0.75 |
2.3 |
|
IHF32-25-125A |
2900 |
4.5 |
1.25 |
16 |
41 |
0.48 |
1.1 |
2.3 |
IHF32-25-160 |
2900 |
5 |
1.39 |
32 |
40 |
1.1 |
2.2 |
2.3 |
1450 |
2.5 |
0.69 |
8 |
38 |
0.143 |
0.75 |
2.3 |
|
IHF32-25-160A |
2900 |
4.5 |
1.25 |
28 |
35 |
0.97 |
1.5 |
2.3 |
IHF40-32-125 |
2900 |
6.5 |
1.8 |
20 |
45 |
0.79 |
2.2 |
2.5 |
1450 |
3.25 |
0.9 |
5 |
41 |
0.108 |
0.75 |
2.5 |
|
IHF40-32-125A |
2900 |
5.6 |
1.56 |
16 |
42 |
0.58 |
1.5 |
2.5 |
IHF40-32-160 |
2900 |
6.5 |
1.8 |
32 |
40 |
1.42 |
2.2 |
2.5 |
1450 |
2.5 |
0.9 |
8 |
36 |
0.15 |
0.75 |
2.5 |
|
IHF40-32-160A |
2900 |
5.6 |
1.56 |
28 |
38 |
1.23 |
1.5 |
2.5 |
IHF50-32-125 |
2900 |
12.5 |
1.56 |
20 |
54 |
1.26 |
2.2 |
3 |
1450 |
6.25 |
1.74 |
5 |
46 |
0.18 |
0.75 |
3 |
|
IHF50-32-125A |
2900 |
11 |
3.05 |
16 |
52 |
0.92 |
1.5 |
3 |
IHF50-32-160 |
2900 |
12.5 |
3.47 |
32 |
48 |
2.27 |
4 |
3 |
1450 |
6.25 |
1.74 |
8 |
41 |
0.33 |
0.75 |
3 |
|
IHF50-32-160A |
2900 |
11.7 |
3.25 |
28 |
47 |
1.88 |
3 |
3 |
IHF50-32-200 |
2900 |
12.5 |
3.47 |
50 |
42 |
4.1 |
7.5 |
3 |
1450 |
6.25 |
1.74 |
12.5 |
33 |
0.65 |
1.5 |
3 |
|
IHF50-32-200A |
2900 |
11.7 |
3.25 |
44 |
40 |
3.5 |
5.5 |
3 |
IHF50-32-250 |
2900 |
12.5 |
3.47 |
80 |
35 |
7.8 |
11 |
3 |
1450 |
6.25 |
1.74 |
20 |
27 |
1.26 |
2.2 |
3 |
|
IHF50-32-250A |
2900 |
11.7 |
3.25 |
70 |
34 |
6.56 |
7.5 |
3 |
… … |
||||||||
IHF100-80-125 |
2900 |
100 |
27.8 |
20 |
75 |
7.26 |
11 |
5 |
1450 |
50 |
13.9 |
5 |
70 |
0.97 |
1.5 |
4.5 |
|
IHF100-80-125A |
2900 |
89 |
24.7 |
16 |
73 |
5.3 |
7.5 |
5 |
IHF100-80-160 |
2900 |
100 |
27.8 |
32 |
74 |
11.78 |
15 |
5 |
1450 |
50 |
13.9 |
8 |
68 |
1.6 |
2.2 |
4.5 |
|
IHF100-80-160A |
2900 |
93.5 |
26 |
28 |
73 |
9.3 |
11 |
5 |
IHF100-65-200 |
2900 |
100 |
27.8 |
50 |
72 |
18.91 |
360 |
5 |
1450 |
50 |
13.9 |
12.5 |
68 |
2.5 |
4 |
4.5 |
|
IHF100-65-200A |
2900 |
93.5 |
26 |
44 |
71 |
15.02 |
22 |
5 |
IHF100-65-250 |
2900 |
100 |
27.8 |
80 |
69 |
31.6 |
45 |
4 |
1450 |
50 |
13.9 |
20 |
63 |
4.3 |
5.5 |
4.5 |
|
IHF100-65-250A |
2900 |
93.5 |
26 |
70 |
68 |
26.2 |
37 |
4.5 |
Parameter table above is only a part of whole. For more, please contact us directly.
