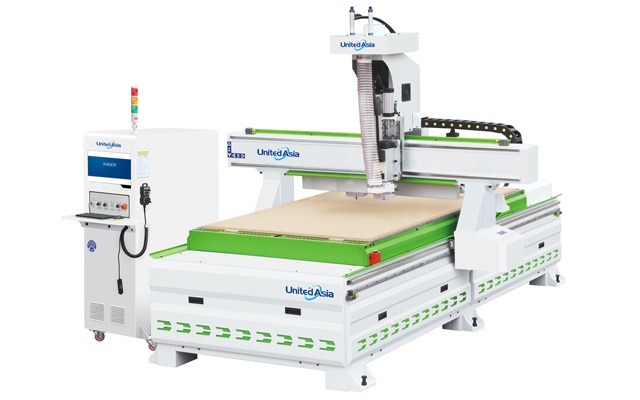

Wood Working Cutting Cnc Route Machine
Model: C-1
Category: Woodworking Machinery Industry / Milling Machinery / CNC Router
Characteristics
Model C-1
Effective work range 2500*1260*200mm
Maximum machining size 2440*1220*50mm
Table size 2440*1220mm
Loading and discharging speed 15m/min
Transmission mode X/Y rack；Z screw rod
Table structure Double-layered word structure
Spindle power 6KW
Speed of spindle 18000r/min
travelling speed 50m/min
Maximum operating speed 20m/min
Drive system SYNTEC/HCFA
Working voltage AC380/3PH/50HZ
Operation system SYNTEC/NCStudio/Lnc
Specifications
|
Model |
C-1 |
|
Effective work range |
2500*1260*200mm |
|
Maximum machining size |
2440*1220*50mm |
|
Table size |
2440*1220mm |
|
Loading and discharging speed |
15m/min |
|
Transmission mode |
X/Y rack；Z screw rod |
|
Table structure |
Double-layered word structure |
|
Spindle power |
6KW |
|
Speed of spindle |
18000r/min |
|
travelling speed |
50m/min |
|
Maximum operating speed |
20m/min |
|
Drive system |
SYNTEC/HCFA |
|
Working voltage |
AC380/3PH/50HZ |
|
Operation system |
SYNTEC/NCStudio/Lnc |
