- BES BH30 BH60 BH100 BH150 BH200 gasket plate heat exchanger for water water application

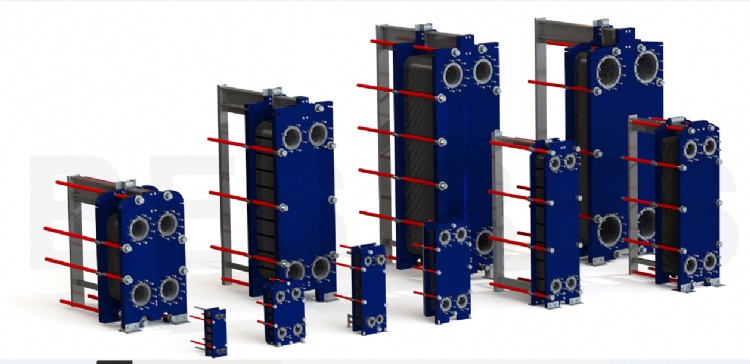

BES BH30 BH60 BH100 BH150 BH200 gasket plate heat exchanger for water water application
Model: BH30 BH60 BH100 BH150 BH200
Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Heat Exchangers for Hydraulic Systems
Characteristics
Product Type Heat Exchanger
Plate Material Stainless steel 316,titanium, ss304
Gasket Material NBr EPDM Viton A Viton G
Packing plywood box
Delivery time 7-10days
DesignPressure 10Bar
Test Pressure 13bar
Origin China
Specifications
BES BH30 BH60 BH100 BH150 BH200 gasket plate heat exchanger for water water application
Gasket plate heat exchanger features
Gasket plate heat exchanger mainly consists of plates and gaskets. It’s formed by a fixed frame plate and a movable plate and compressed by tightening bolts. According to different service conditions, the plate materials are mainly divided into ss304, ss316L, SMO254, titanium plate, alloy C276, etc. The gasket material is mainly EPDM, NBR and Viton gasket. The connection diameter is optional from DN32 to DN400. The hot and cold medium forms turbulent flow in the adjacent flow channels to exchange heat. Compared with the shell and tube heat exchanger, the gasket plate heat exchanger has a more compact structure and higher heat exchange efficiency.
Gasket plate heat exchanger structure
Fixed plate, movable plate, plate, gasket, tightening bolt
Gasket plate heat exchanger material
Fixed plate: Carbon steel
Movable plate: Carbon steel
Tightening bolt: Carbon steel
Plate: Stainless steel AISI304, AISI316L, Titanium, SMO254, Hastelloy C276
Gasket: NBR, EPDM, HEPDM, HNBR, VITON
Gasket plate heat exchanger advantages
1.High heat transfer efficiency: up to 8600W
2.Small space, compact structure
3.Light weight
4.Easy to maintenance, easy to clean
Gasket plate heat exchanger applications
Sulfuric acid industry, Sodium hydroxide industry, HVAC, water treatment system, swimming pool, pharmacy, beverage industry, etc.
Gasket Plate Heat Exchanger Product Data
MODEL | Height H[mm] | Width W[mm] | Max Length L[mm] | Vertical port Distance VC(mm) | Horizontal port Distance HC(mm) | MAX Pressure[barg] | Port Size | Max water flow rate [m3/h] |
B30 | 480 | 180 | 620 | 257 | 60 | 10 | Pipe 1 1/4″ | 18 |
B60B | 920 | 320 | 1435 | 640 | 140 | 10/16 | DN50/2″ | 36 |
B60H | 920 | 320 | 1435 | 640 | 140 | 10/16 | DN50/2″ | 36 |
LB60B | 1278 | 320 | 1445 | 1036 | 140 | 10/16 | DN50/2″ | 36 |
LB100B | 1888 | 480 | 3242 | 1338 | 225 | 10/16 | DN100/4″ | 140 |
LB100P | 1888 | 480 | 3242 | 1338 | 225 | 10/16 | DN100/4″ | 140 |
SH60H | 704 | 400 | 1430 | 380 | 203 | 10/16 | DN65/2 1/2″ | 50 |
SH200H | 1397 | 800 | 3305 | 698 | 363 | 10/16 | DN200/8″ | 600 |
B100B | 1045 | 454 | 1795 | 719 | 225 | 10/16 | DN100/4″ | 140 |
B100H | 1045 | 454 | 1795 | 719 | 225 | 10/16 | DN100/4″ | 140 |
B150B | 1815 | 610 | 3246 | 1294 | 298 | 10/16 | DN150/6″ | 360 |
B150H | 1815 | 610 | 3246 | 1294 | 298 | 10/16 | DN150/6″ | 360 |
B200B | 2260 | 780 | 3290 | 1478 | 353 | 10/16 | DN200/8″ | 600 |
B200H | 2260 | 780 | 3290 | 1478 | 353 | 10/16 | DN200/8″ | 600 |
B250B | 2595 | 920 | 3350 | 1939 | 439 | 10/16 | DN250/8″ | 750 |
B250H | 2595 | 920 | 3350 | 1939 | 439 | 10/16 | DN250/8″ | 750 |
B300B | 2900 | 1150 | 3378 | 1842 | 596 | 10/16 | DN300/12″ | 997 |
B450H | 3530 | 1430 | 6204 | 2468 | 720 | 10/16 | DN450/18″ | 1350 |
Q030 | 1245 | 615 | 1795 | 743 | 310 | 10/16 | DN100/4″ | 140 |
V4 | 590 | 200 | 620 | 430 | 62 | 10 | DN25/1″ | 18 |
GC008 | 774 | 180 | 620 | 640 | 60 | 10 | DN25/1″ | 18 |
